Description
The ASUS PRIME Z590-A is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 11Th Gen Intel Core Processors

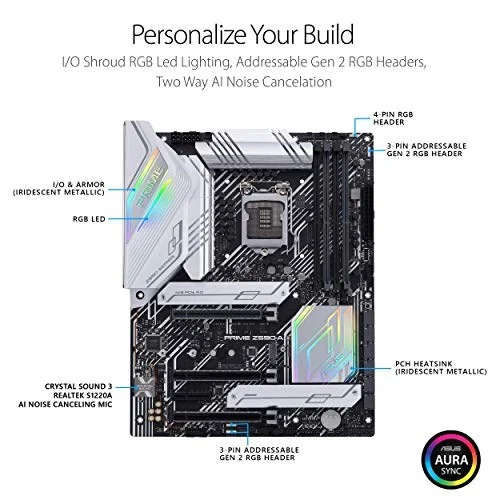

- AI Motherboard : AI Overclocking, AI Cooling And AI Noise Cancelation

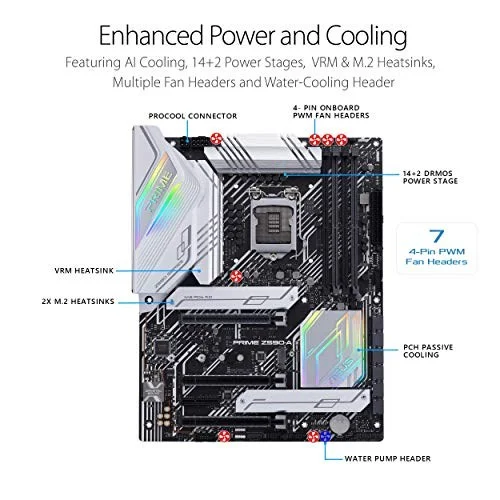

- Enhanced Power Solution: 14+2 Drmos Power Stages, Procool Sockets, Alloy Chokes And Durable Capacitors For Stable Power Delivery In The Most Demanding Situations
- Comprehensive Cooling: VRM Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 4 Utility
- Boosted Memory Performance: Careful Routing Of Traces And Vias, Plus Ground Layer Optimizations To Preserve Signal Integrity For Improved Memory Overclocking With ASUS Optimem II
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME Z590-A 90MB16D0-M0AAY0 |
| Launch Date | January 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |

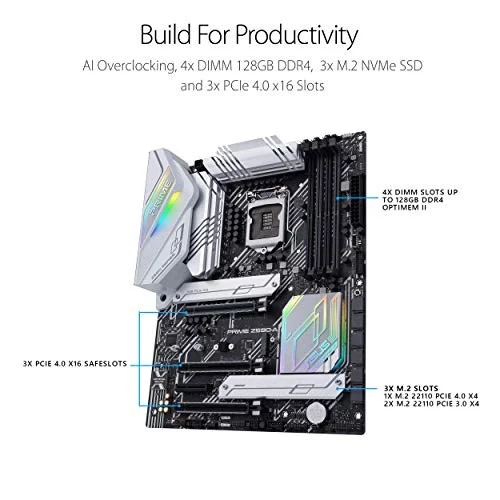

| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

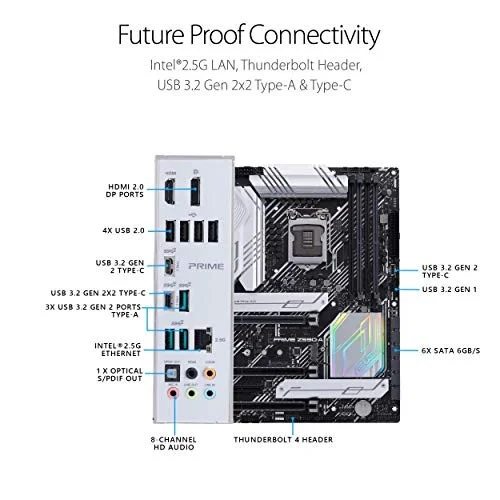

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME Z590-A |
| SKU Code | PRIME Z590-A |
| GTIN / EAN | 195553103879 |
