Asus PRIME Z690-P LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

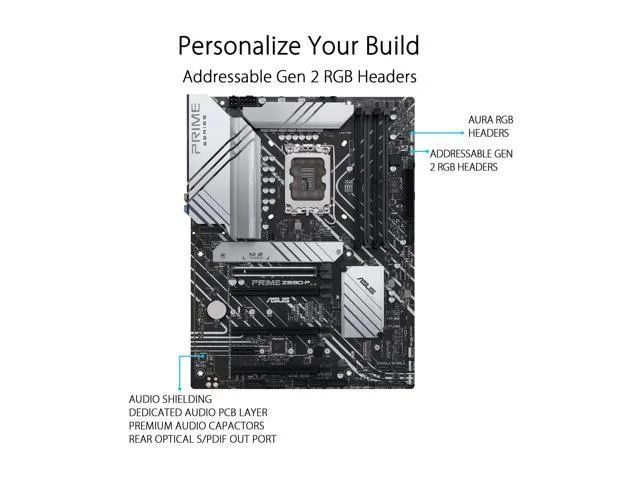

The Asus PRIME Z690-P is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- ASUS Prime Z690-P LGA 1700 Intel 12th Gen ATX Motherboard- PCIe 5.0, DDR5, 14+1 Power Stages, 3x M.2, 2.5Gb LAN, V-M.2 e-key, Front Panel USB 3.2 Gen 1 USB Type-C, Thunderbolt 4 Support, Arua Sync Memory Standard: DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800. Number of Memory Slots: 4×288pin (DDR5) PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports x4 mode. PCI Express 3.0 x16: 2 x PCI Express 3.0 x16 * Support x4 mode. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME Z690-P 90MB19Q0-M0EAY0 90MB19Q0-MVAAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME Z690-P |
| SKU Code | PRIME Z690-P |
| GTIN / EAN | 195553469692 |
