Description

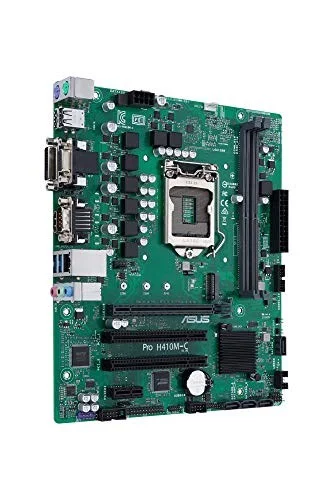

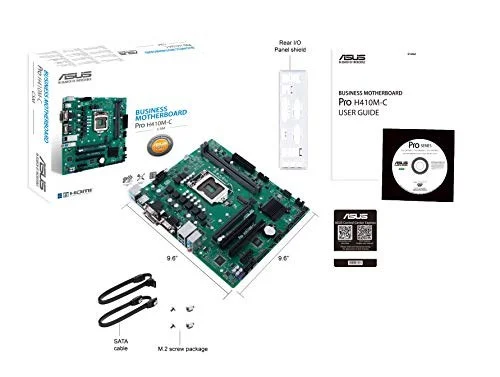

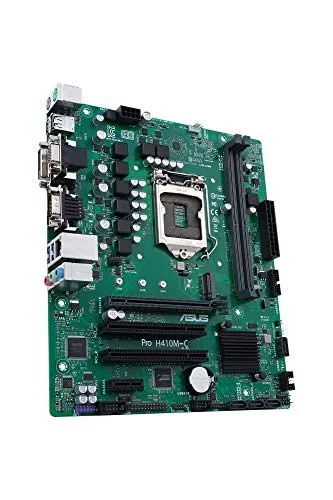

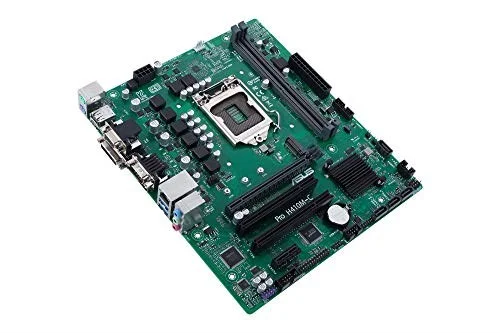

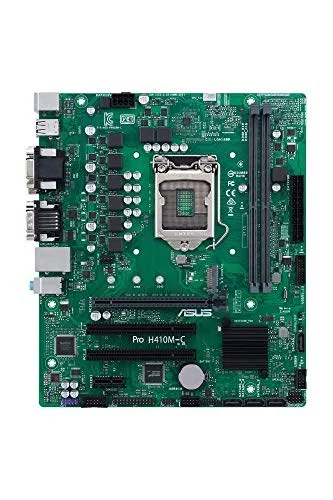

The ASUS PRO H410M-C/CSM is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Intel LGA 1200 Socket: Ready For 10Th Gen Intel Core Processors, Features 2X DIMM, 4X SATA, M. 2, DVI/HDMI/D-Sub, Intel I219V, USB 3. 2 Gen 1
- ASUS-Exclusive Self-Recovering BIOS Technology For Automatic System BIOS Recovery From A Verified Backup
- ASUS CSM Motherboard: ASUS Corporate Stable Model, With Up To 36-Month Supply, EOL Notice & ECN Control
- ASUS Event Log For Capturing And Managing Detailed System Information
- ASUS Control Center Express(ACCE) To Make IT Endpoint Management
- Dedicated LPC Header And Debug Card With LCD Display For Faster Troubleshooting
- Innovative Moisture-Resistant Coating To Protect The Motherboard From Harsh Environments
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRO H410M-C/CSM 90MB1480-M0AAYC |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H410 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO H410M-C/CSM |
| SKU Code | PRO H410M-C/CSM |
| GTIN / EAN | 192876721841 |
