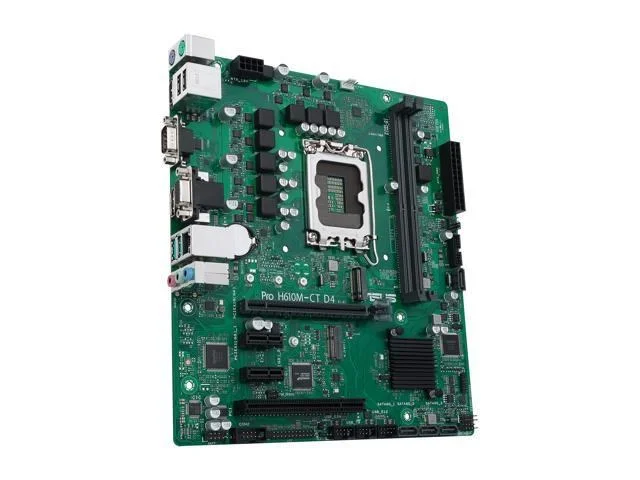

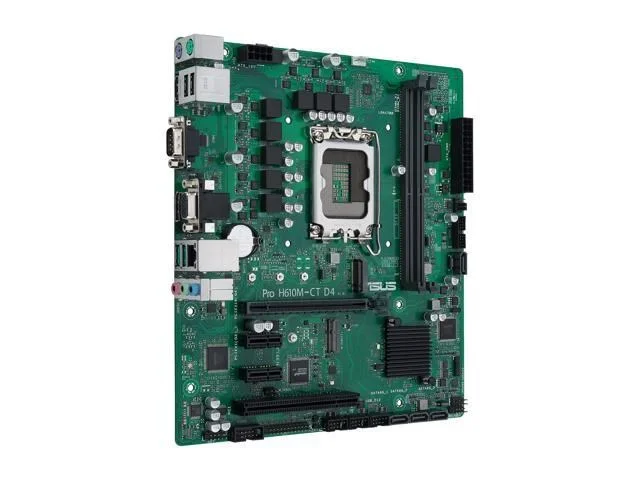

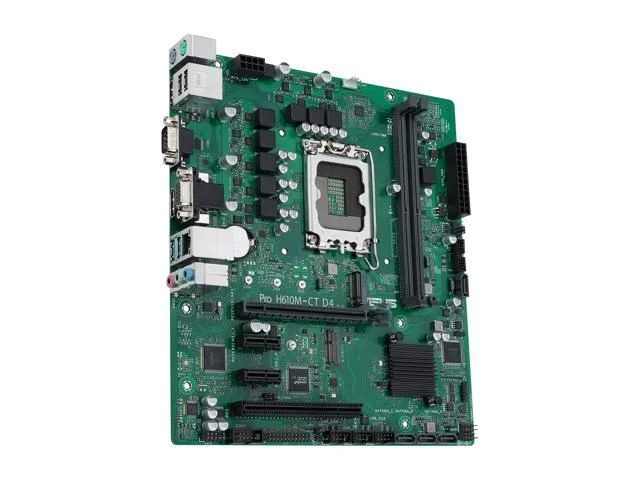

Asus PRO H610M-CT D4-CSM LGA1700 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRO H610M-CT D4-CSM is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 3200 MT/s (OC).
- ASUS PRIME H610I-PLUS D4-CSM LGA 1700 Intel H610 SATA 6Gb/s Intel Motherboard Memory Standard: DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 . Number of Memory Slots: 2x288pin (DDR4) Audio Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors

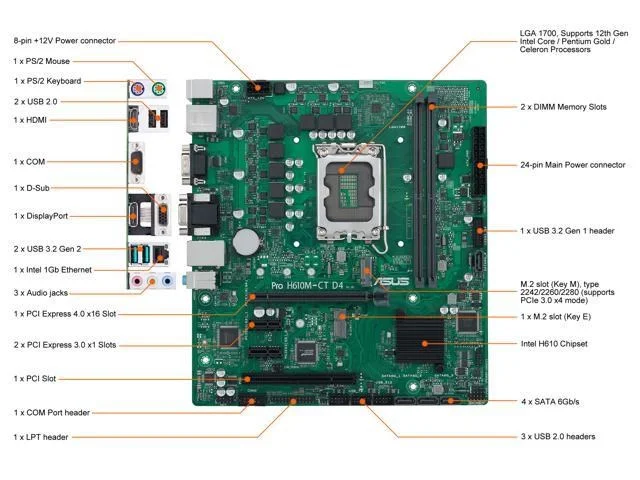

Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRO H610M-CT D4-CSM 90MB1A40-MVAAYC |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel H610 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO H610M-CT D4-CSM |
| SKU Code | PRO H610M-CT D4-CSM |
| GTIN / EAN | 195553755757 |
