ASUS Pro Q670M-C-CSM LGA1700 Micro-ATX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

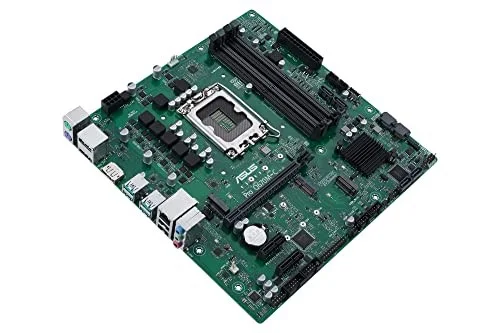

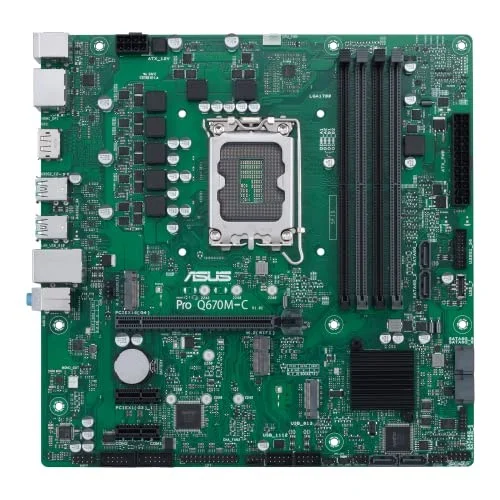

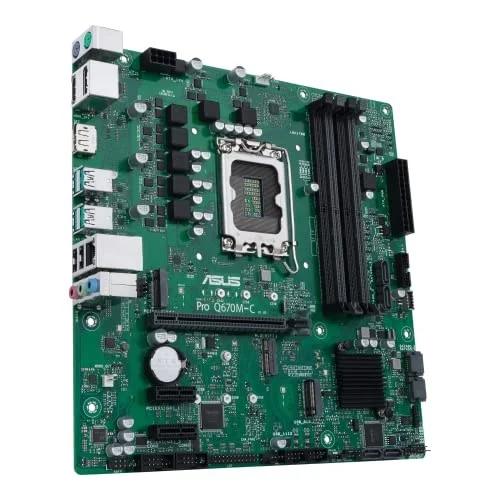

The ASUS Pro Q670M-C-CSM is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 4800 MT/s (OC).
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- ASUS COM debug header for more efficient troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit for faster and more efficient customization
- ASUS Control Center Express (ACCE) for easier IT endpoint management
- Ultrafast connectivity: PCIe 4.0, DDR5, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C and Intel 1Gb Ethernet
- ASUS Boot Defender: Designed to automatically protect, detect and recover the boot environment against any intrusions and attacks
- Q-LED Core display designed for troubleshooting potential issue during the Power-On Self-Test (POST)
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Pro Q670M-C-CSM 90MB19E0-M0AAYC 90MB19E0-MVAAYC 90MB19E0-M2AAYC |
| Launch Date | March 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Q670 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

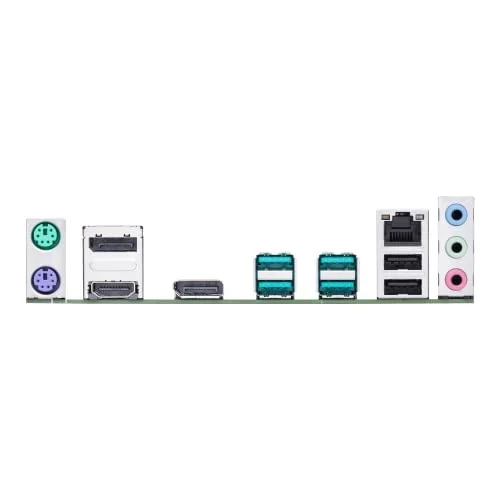

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Pro Q670M-C-CSM |
| SKU Code | Pro Q670M-C-CSM |
| GTIN / EAN | 195553518383 |
