Description
The ASUS Pro WS TRX50-SAGE WIFI is a SSI CEB motherboard for sTR5. It supports DDR5 memory up to 6800 MT/s (OC).

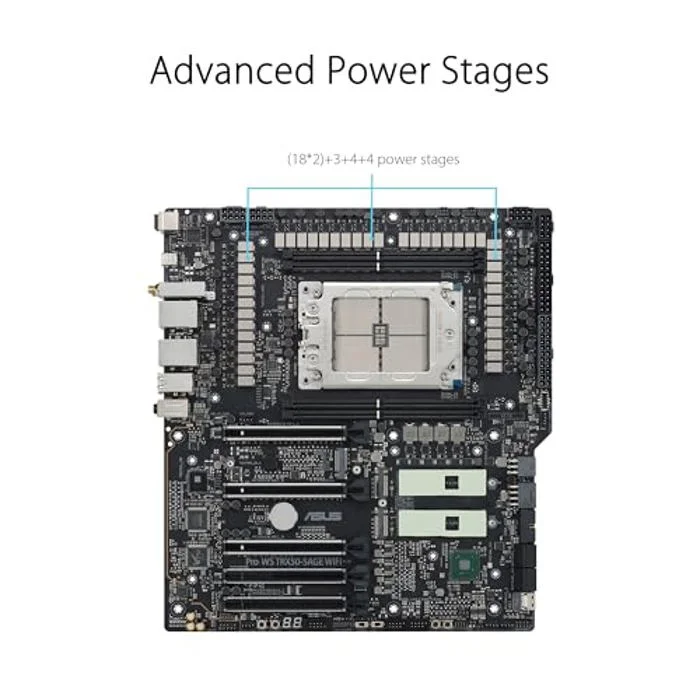

- ASUS Pro WS TRX50-SAGE WIFI CEB Workstation motherboard, AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors,ECC R-DIMM DDR5, 36 power-stage, WiFi 7,PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support. Number of Memory Slots: 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Memory Standard: DDR5, ECC Registered Memory Audio Channels: Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Feat…
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0AAY0 |
| Launch Date | November 2023 |
| CPU Socket | sTR5 |
| Chipset Model | TRX50 |
| Board Size / Form Factor | SSI CEB |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 1024 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |

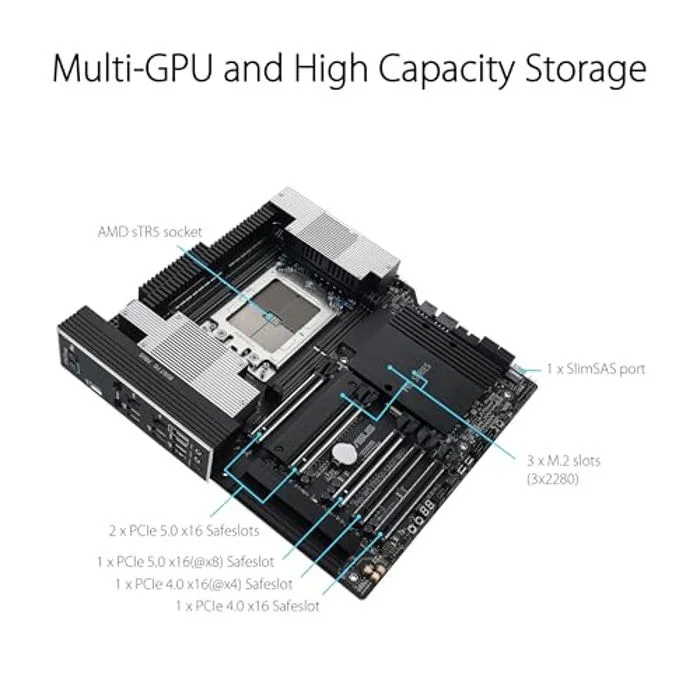

| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

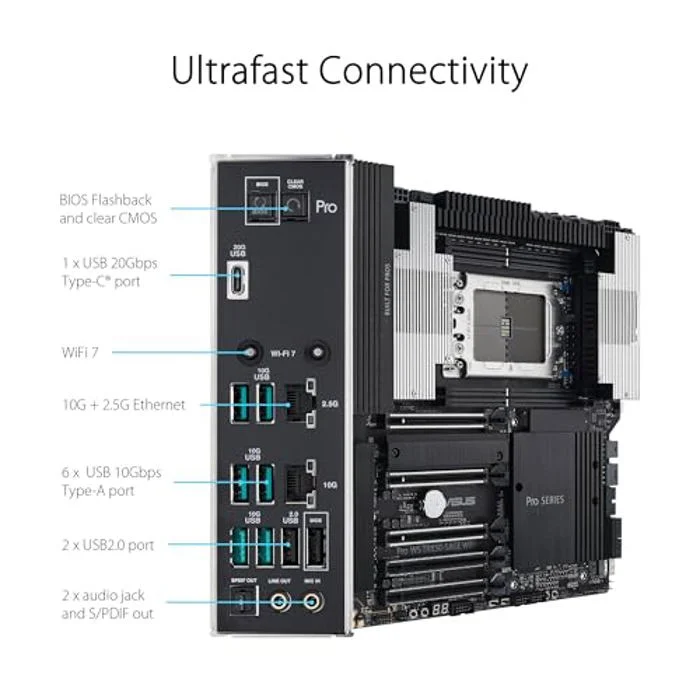

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO WS TRX50-SAGE WIFI |
| SKU Code | PRO WS TRX50-SAGE WIFI |
| GTIN / EAN | 197105402720 |
