ASUS Pro WS WRX80E-SAGE SE WiFi II sWRX8 SSI EEB DDR4 2048 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

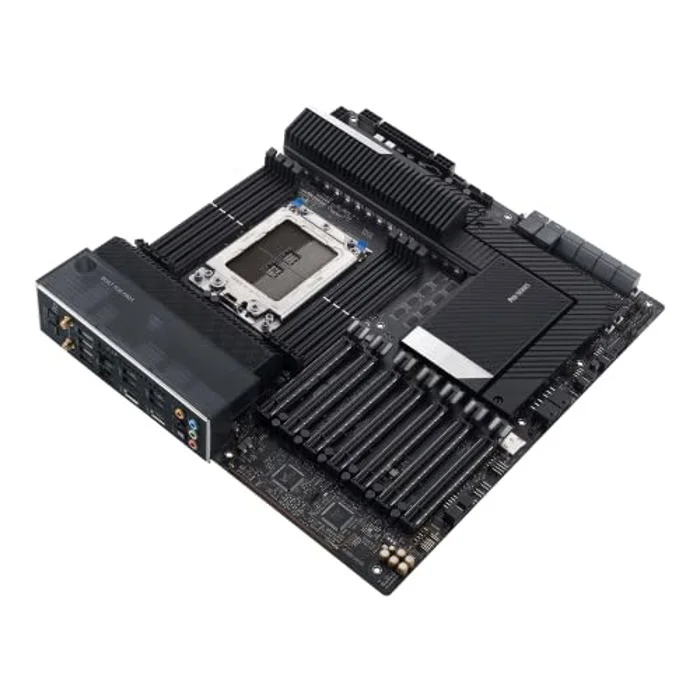

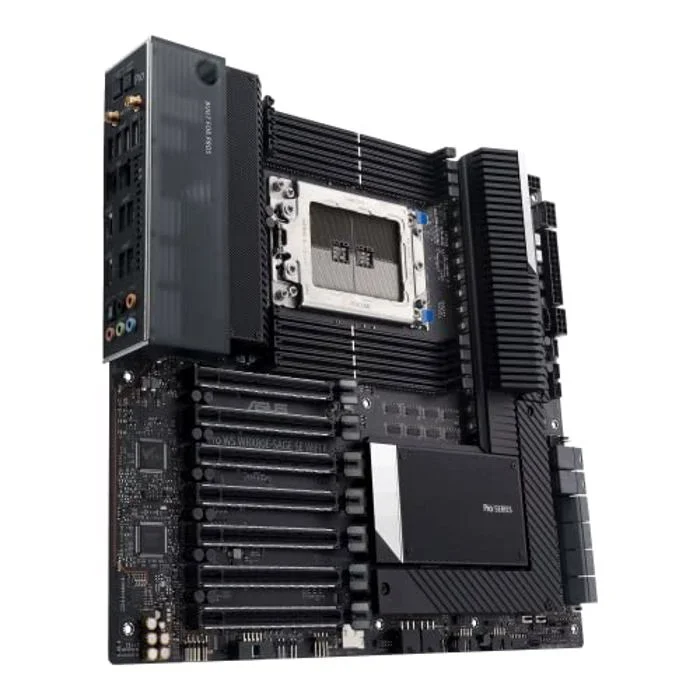

The ASUS Pro WS WRX80E-SAGE SE WiFi II is a SSI EEB motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).
- AMD sWRX8 socket: Ready for AMD Ryzen Threadripper PRO Series Processors

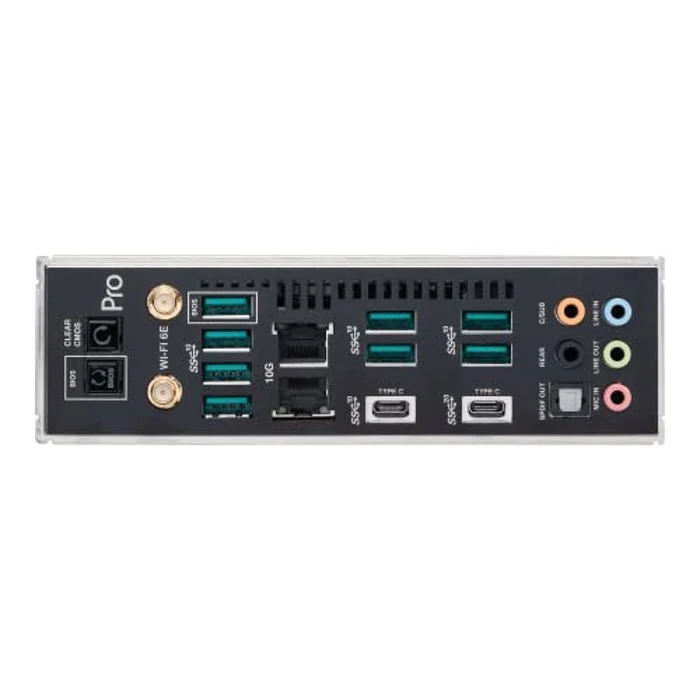

- Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card, and Intel X550-AT2 dual 10Gb Ethernet, WiFi 6E.
- ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support, and R-DIMM memory support
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility, and equipped with SafeSlot for ultimate security
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Pro WS WRX80E-SAGE SE WIFI II 90MB1E60-M0AAY0 |
| Launch Date | March 2023 |
| CPU Socket | sWRX8 |
| Chipset Model | WRX80 |
| Board Size / Form Factor | SSI EEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 2048 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 7 × PCIe x16 |
| PCIe x16 (Qty) | 7 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Pro WS WRX80E-SAGE SE WIFI II |
| SKU Code | Pro WS WRX80E-SAGE SE WIFI II |
| GTIN / EAN | 197105020863 |
