ASUS PRO WS X299 SAGE II LGA2066 SSI CEB DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

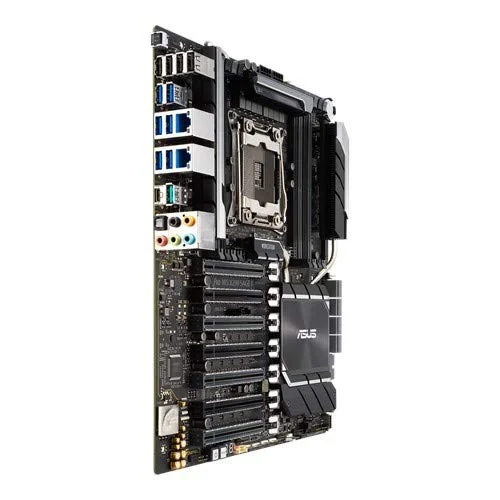

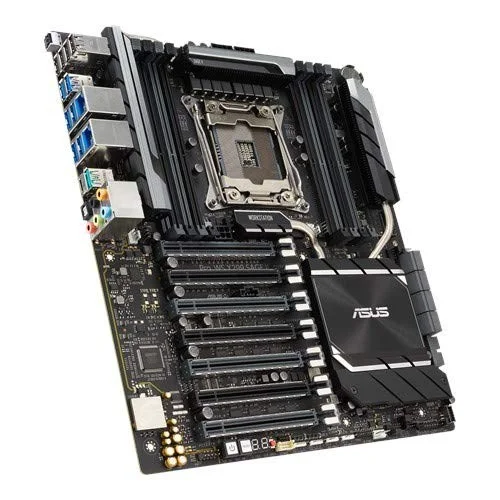

The ASUS PRO WS X299 SAGE II is a SSI CEB motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).
- Intel LGA 2066 Socket: Ready For The Latest Intel Core X Processors.
- AI Overclocking: Quickly Optimizes CPU Performance By Profiling The CPU And The Cooler To Achieve Results That Are Very Close To Manual Tuning By Experts.
- Dual Intel 2.5G LAN: Provides Increased Data Throughput And Improved Efficiency, Making It Ideal For Large File Transfers And Backups
- Supports Up To 4-Way Graphics Cards: Contains 7 Pcie Gen 3 X16 Slots And Supports NVIDIA SLI And AMD Crossfire
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRO WS X299 SAGE II 90SW00U0-M0AAY0 |
| Launch Date | September 2020 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | SSI CEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3600 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 7 × PCIe x16 |
| PCIe x16 (Qty) | 7 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO WS X299 SAGE II |
| SKU Code | PRO WS X299 SAGE II |
| GTIN / EAN | 192876322369 |
Price History (last 12 months)
Plots available price points within the past 12 months.
