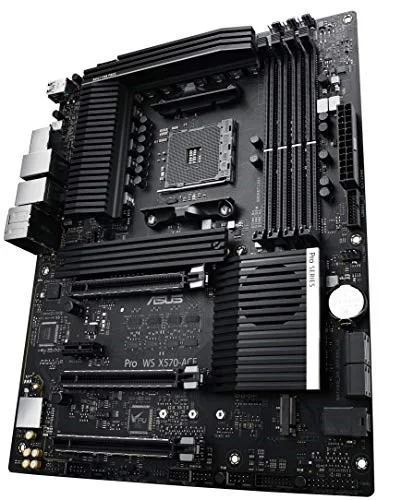

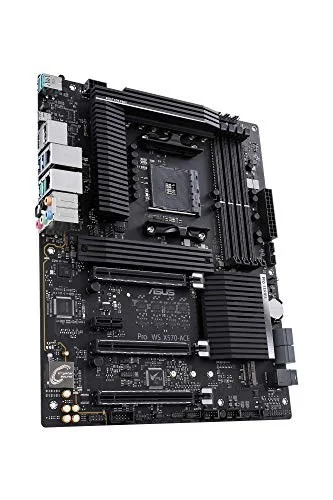

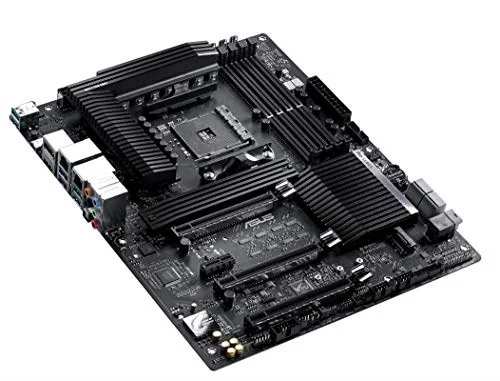

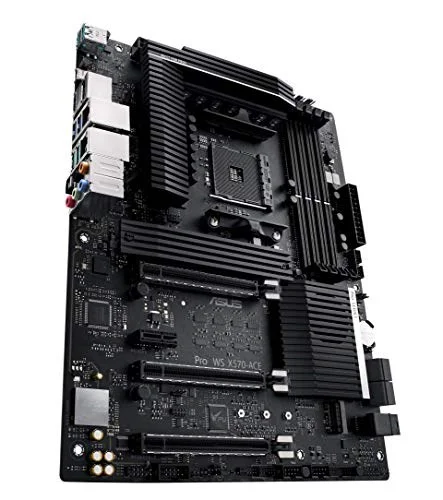

ASUS PRO WS X570-ACE AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRO WS X570-ACE is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- Three PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workloads
- Reliable and responsive ECC memory suitable for mission critical tasks
- ASUS Control Centre Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
- Ultra-fast storage: Up to 64Gbps M.2 & 32Gbps U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports
- Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRO WS X570-ACE 90MB11M0-M0EAY0 90MB11M0-M0AAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO WS X570-ACE |
| SKU Code | PRO WS X570-ACE |
| GTIN / EAN | 192876322710 |
