ASUS ProArt B550-Creator AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ProArt B550-Creator is a ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).
- AMD AM4 Socket: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors

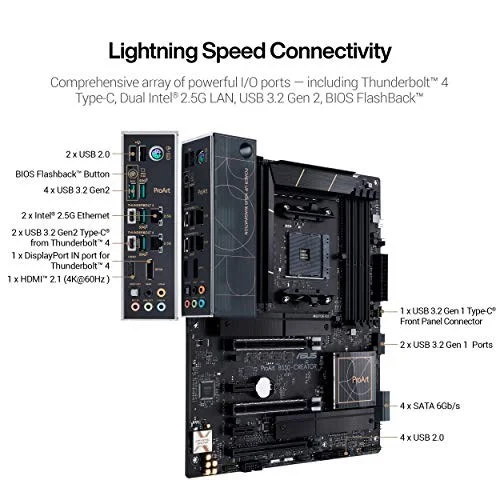

- Powerful I/O: Dual Thunderbolt 4 Type-C Ports, Dual 2.5G Onboard Ethernet, Four USB3.2 Gen 2@Back IO

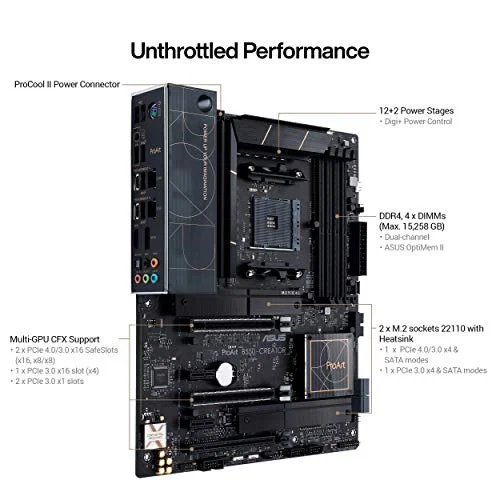

- Un-Throttled Performance: PCI 4.0 Ready For Speedy Data Transfer, 12+2 Power Stages To Support The Latest AMD Ryzen Processors
- Industry-Leading Security: USB Port Management, Software Blacklist, Regedit Enabled/Disabled Via ASUS Control Center Express

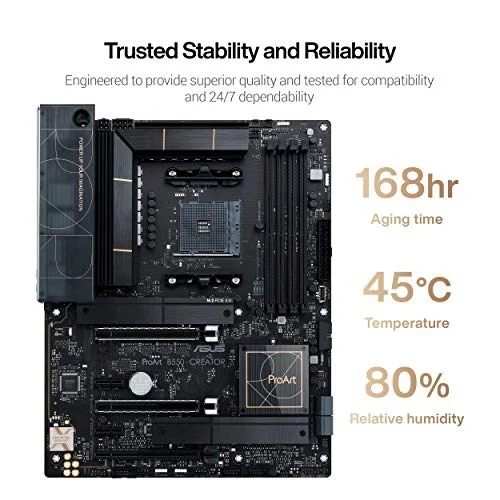

- Trusted Stability: Tested For 24/7 To Ensure Robustness, Validated For Solid Compatibility And Equipped With Safeslot For Durability

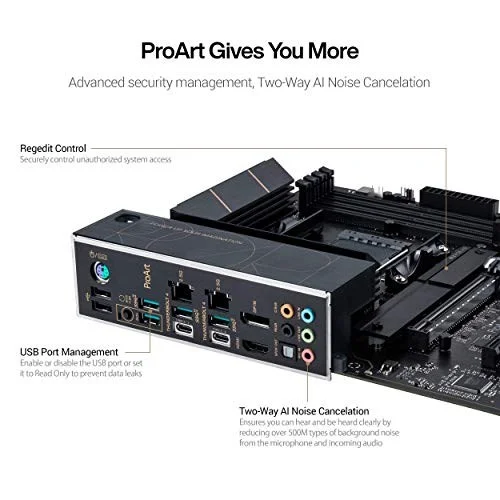

- Proart Gives You More: Two-Way AI Noise Cancelation To Fit WHF Scenario, Creator Hub + Creationfirst For A Unified User Experience
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PROART B550-CREATOR 90MB17L0-M0EAY0 90MB17L0-M0AAY0 |
| Launch Date | March 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PROART B550-CREATOR |
| SKU Code | PROART B550-CREATOR |
| GTIN / EAN | 195553147088 |
