ASUS ProArt B650-Creator AM5 ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ProArt B650-Creator is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

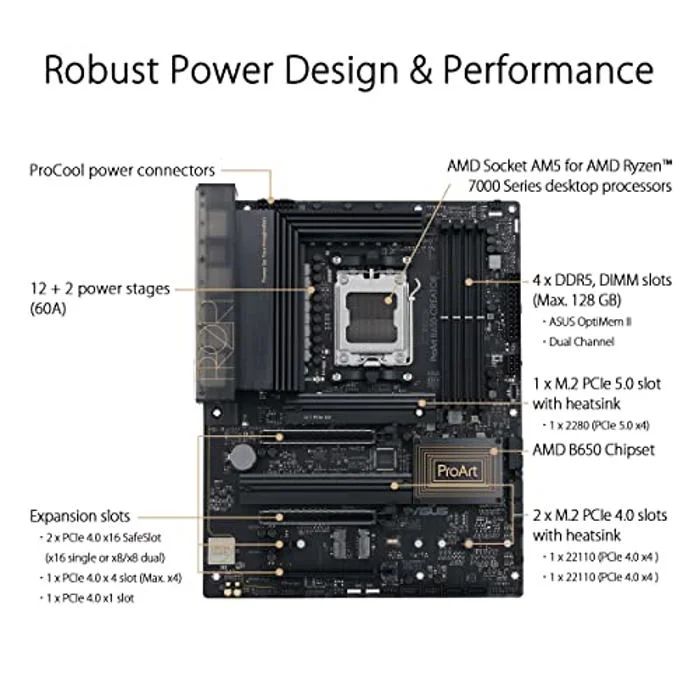

- AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors

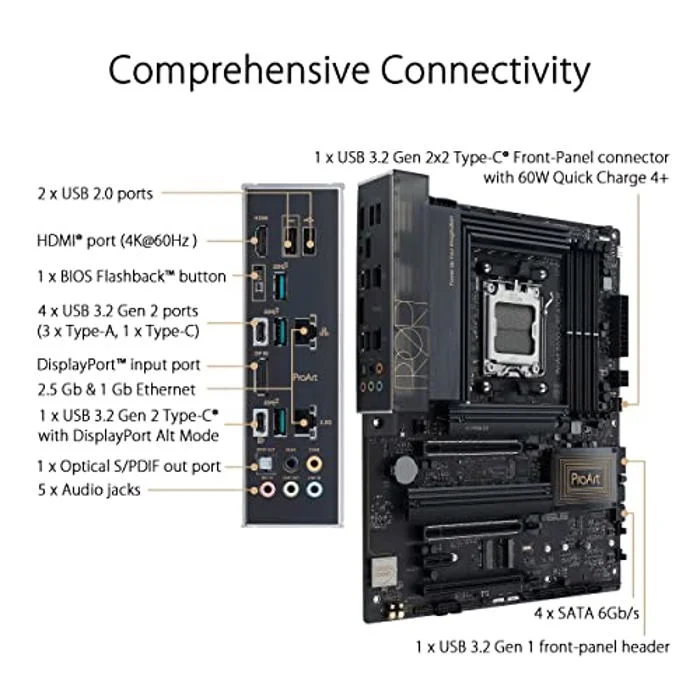

- Future-proofed connectivity: 2.5 Gb&1Gb Ethernet, two PCIe 4.0x16 and 1xPCIe 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+, USB4 Support,DisplayPort via USB-C
- Networking: 2.5 Gb and 1 Gb Ethernet, WiFi module onboard/ M.2 Slot (Key E)
- Exclusive overclocking technologies: AI Overclocking, Dynamic OC Switcher, and Ryzen Core Flex
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
- Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PROART B650-CREATOR 90MB1C40-M0AAY0 90MB1C40-M0EAY0 |
| Launch Date | December 2022 |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PROART B650-CREATOR |
| SKU Code | PROART B650-CREATOR |
| GTIN / EAN | 195553988094 |
Price History (last 12 months)
Plots available price points within the past 12 months.
