ASUS PROART B660-CREATOR D4 LGA1700 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PROART B660-CREATOR D4 is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

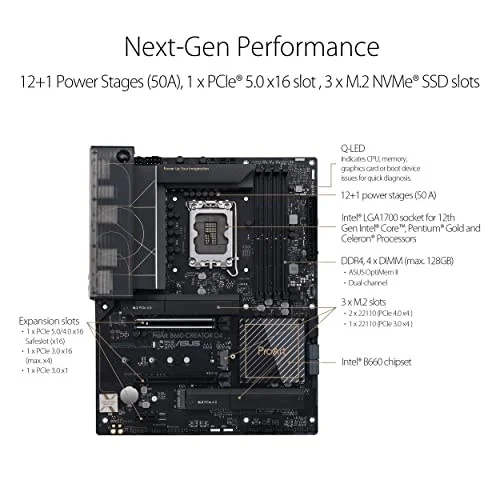

- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0,DDR4 and out of box Windows 11 ready

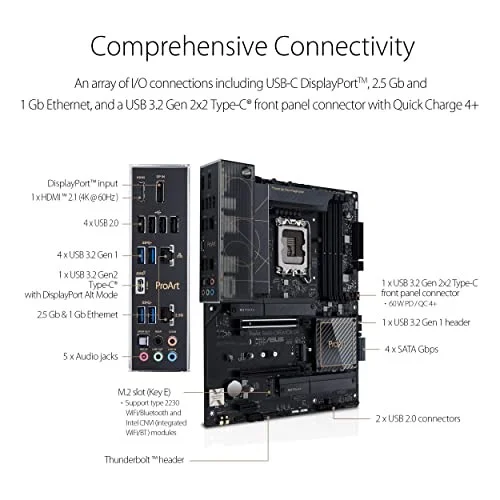

- Extensive connectivity: 2.5Gb & 1Gb onboard Ethernet, 3x M.2 slots and front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support
- Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability
- PC DIY Friendly: M.2 Q-Latch, Q-connector, Q-DIMM, Q-LED,Pre-mount I/O shield, BIOS FlashBack
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PROART B660-CREATOR D4 90MB19F0-M0AAY0 90MB19F0-M0EAY0 |
| Launch Date | January 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PROART B660-CREATOR D4 |
| SKU Code | PROART B660-CREATOR D4 |
| GTIN / EAN | 195553518512 |
