Asus ProArt X670E-CREATOR WIFI AM5 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ProArt X670E-CREATOR WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

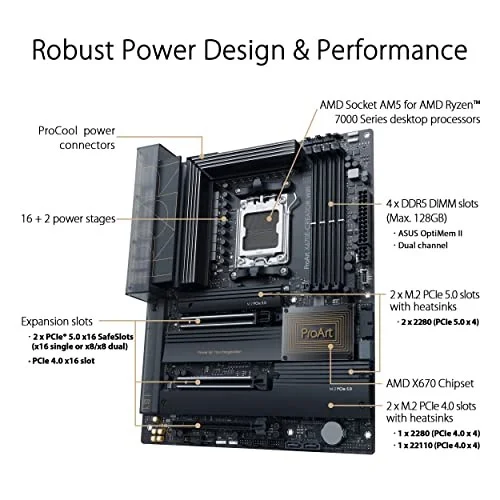

- ASUS ProArt X670E-Creator WiFi 6E Socket AM5 (LGA 1718) Ryzen 7000 ATX Content Creator Motherboard (PCIe 5.0, DDR5, 16+2 Power Stages, USB4, 10Gb & 2.5Gb LAN, WiFi 6E, Four M.2 Slots, Front Panel USB 3.2 Gen2x2 Type-C Ports) Number of Memory Slots: 4x288pin (DDR5) Memory Standard: Supports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Audio Chipset: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ProArt X670E-CREATOR WIFI 90MB1B90-M0AAY0 90MB1B90-MVAAY0 |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ProArt X670E-CREATOR WIFI |
| SKU Code | ProArt X670E-CREATOR WIFI |
| GTIN / EAN | 195553895897 |
