ASUS ProART Z490-CREATOR 10G LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ProART Z490-CREATOR 10G is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

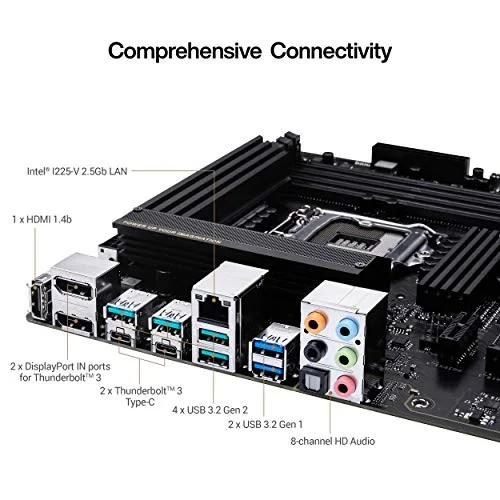

- Ultrafast Connectivity For Seamless Speed : Two Thunderbolt 3 Type-C Ports, Dual M. 2, HYPER 10G LAN Card And Onboard 2. 5G Intel LAN

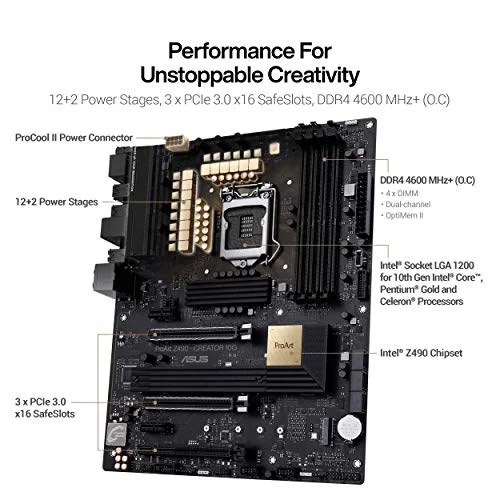

- Powerful Performance For Unstoppable Creativity : Reliable Power Design With 12+2 Drmos Power Stages, Multi-GPU Support And ASUS Optimem II Memory Trace Layout Improves Memory Stability And Compatibility

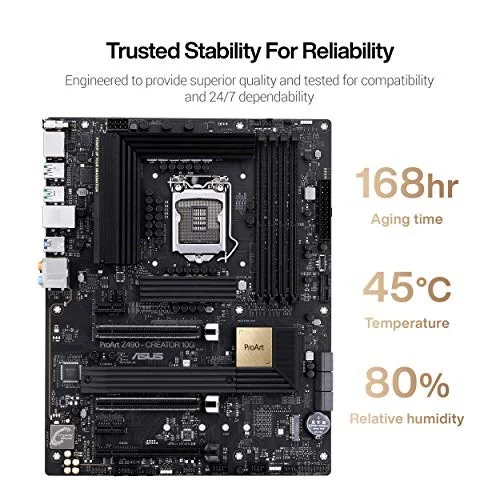

- Unshakable Stability: Tested For 24/7 Dependability, Validated For Solid Compatibility And Equipped With Safeslot For Durability
- Proart Creator Hub: Centralized Software For One-Stop Monitoring And Management Of ASUS Proart Series Products Enables Efficient Content Creation Workflows
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ProART Z490-CREATOR 10G 90MB14E0-M0EAY0 90MB14E0-M0AAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ProART Z490-CREATOR 10G |
| SKU Code | ProART Z490-CREATOR 10G |
| GTIN / EAN | 192876703243 |
Price History (last 12 months)
Plots available price points within the past 12 months.
