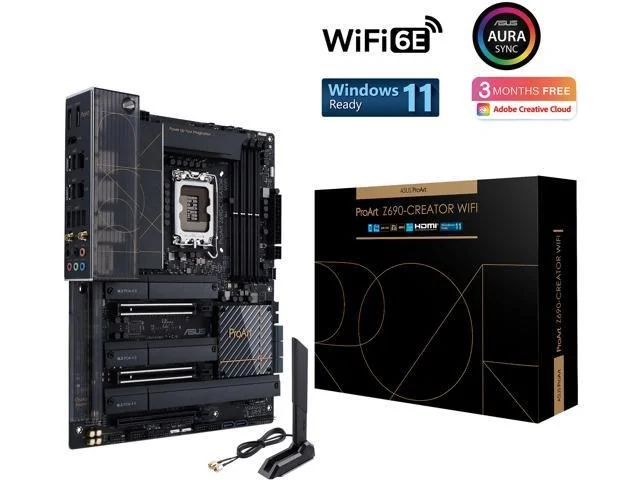

ASUS ProArt Z690 CREATOR WIFI LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

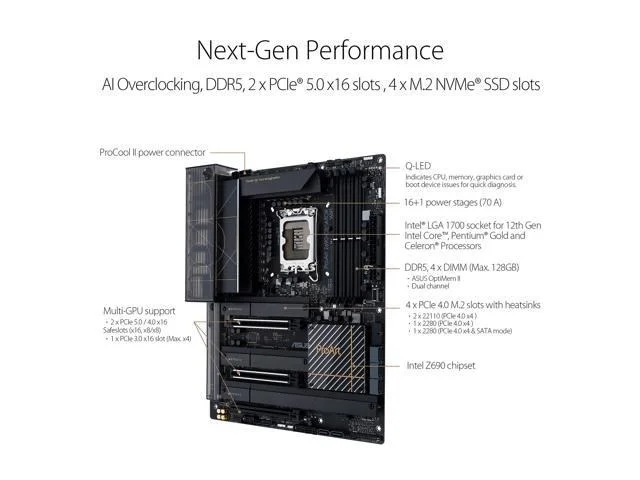

The ASUS ProArt Z690 CREATOR WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).
- ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support) Memory Standard: DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * memory frequency support depends on the CPU types. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * Actual support may vary by CPU. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports Intel Optane Memory H Series on PCH-attached PCIE slot. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel Core desktop …
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ProArt Z690-CREATOR WIFI 90MB19H0-M0EAY0 Z690-CREATOR WIFI 90MB19H0-M0AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ProArt Z690-CREATOR WIFI |
| SKU Code | ProArt Z690-CREATOR WIFI |
| GTIN / EAN | 4711081460749 |
