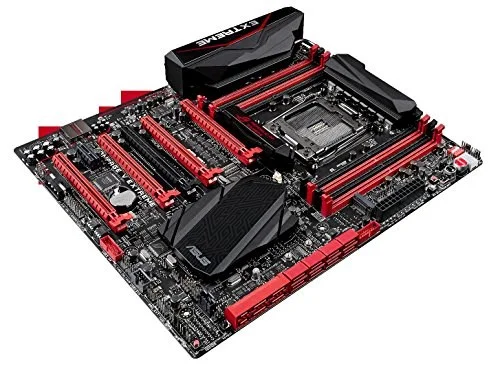

ASUS RAMPAGE V EXTREME LGA2011-3 EATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS RAMPAGE V EXTREME is a EATX motherboard for LGA2011-3. It supports DDR4 memory up to 3300 MT/s (OC).
- Wi-Fi 802.11Ac, Supports Dual Band Frequency 2.4/5 Ghz.
- Extreme Engine Digi+ IV. Up To 1300Mbps Transfer Speed
- Bluetooth V4.0, 2.6 " LCM Display, Extended ATX Form Factor
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG RAMPAGE V EXTREME RAMPAGE V EXTREME 90MB0JG0-M0EAY0 |
| Launch Date | |
| CPU Socket | LGA2011-3 |
| Chipset Model | Intel X99 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3300 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 0 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG RAMPAGE V EXTREME |
| SKU Code | ROG RAMPAGE V EXTREME |
| GTIN / EAN | 748658880512 |
