ASUS ROG Crosshair VII Hero (Wi-Fi) AM4 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Crosshair VII Hero (Wi-Fi) is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

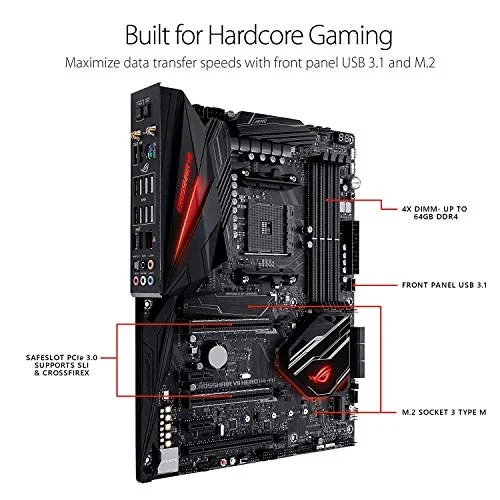

- Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, onboard 802.11ac Wi-Fi, front panel USB 3.1 Gen2 and gigabit LAN

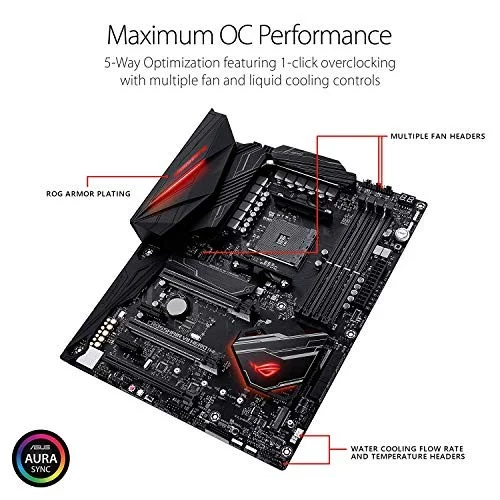

- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance with external clock generator.Form Factor
- ATX Form Factor(Inches) : 12 x 9.6

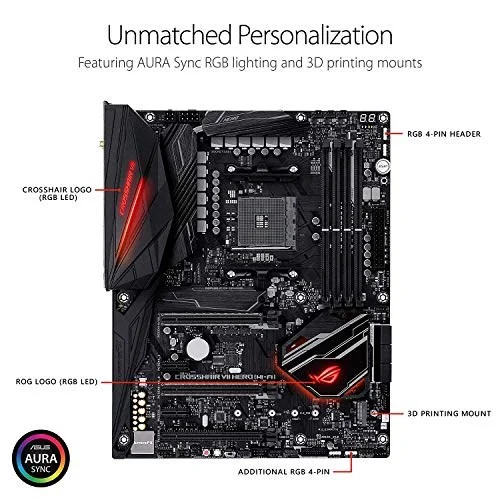

- Aura Sync RGB lighting with two addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products. Operating System - Windows 10 64-bit.Windows 7 64-bit *7
- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality. Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac. Supports dual band frequency 2.4/5 GHz
- Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | Crosshair VII Hero (Wi-Fi) ROG Crosshair VII Hero (Wi-Fi) |
| Launch Date | April 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | AMD X470 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Crosshair VII Hero (Wi-Fi) |
| SKU Code | Crosshair VII Hero (Wi-Fi) |
| GTIN / EAN | 889349976289 |
Price History (last 12 months)
Plots available price points within the past 12 months.
