ASUS ROG Crosshair VIII Dark Hero AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Crosshair VIII Dark Hero is a ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).
- AMD AM4 Socket: Ready For 2Nd, 3Rd Gen AMD Ryzen Processors And 3Rd Gen AMD Ryzen Processors

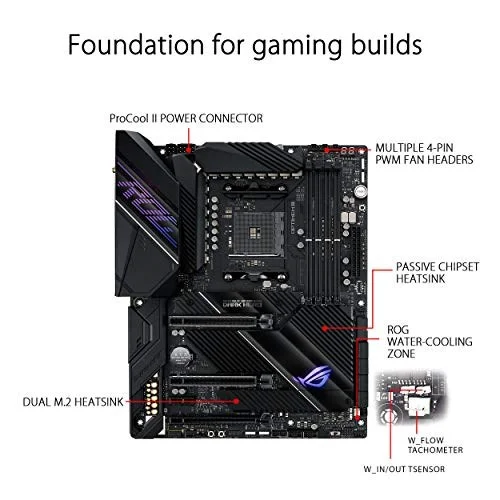

- Comprehensive Thermal Design: Passive Chipset Heatsink, M.2 Aluminum Heatsinks And ROG Water Cooling Zone.

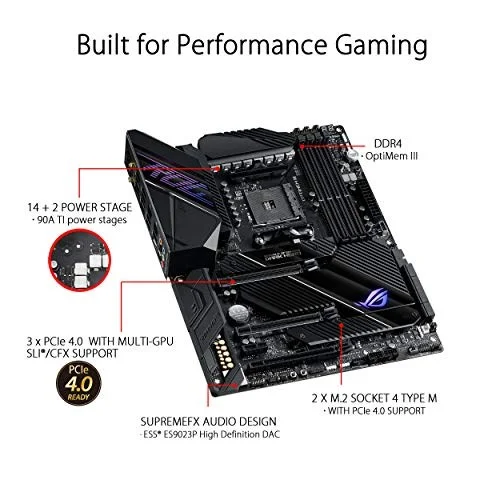

- Robust Power Delivery: Designed Power Solution 14+2 TI Power Stages Rated For 90A, Procool II Power Connectors, Microfine Alloy Chokes And 10K Japanese-Made Black Metallic Capacitors
- High-Performance Connectivity: On-Board Wi-Fi 6 (802.11Ax) With MU-MIMO Support, 2.5 Gbps Ethernet And Gigabit Ethernet, USB 3.2 Gen 2 Type-C
- DIY Friendly Design: Pre-Mounted I/O Shield, ASUS Safeslot, BIOS Flashback And Premium Components For Maximum Endurance.
- Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen. 2 Addressable Headers
- Industry-Leading ROG Audio: ROG Supremefx S1220 Is Combined With The Venerable ESS ES9023P To Deliver High-Fidelity Audio To Headsets And Exotic Cans.
- Please Ensure Your BIOS Is Up To Date If Installing A Compatible Ryzen 5000 Series CPU. Visit ASUS Site Search By Motherboard Model Name, Click On “Support” Tab, Drivers And Tools, Then BIOS & Firmware To Download The Latest BIOS.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Crosshair VIII Dark Hero Crosshair VIII Dark Hero 90MB1760-M0EAY0 90MB1760-M0AAY0 |
| Launch Date | November 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4666 / DDR4-4800 / DDR4-4866 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Crosshair VIII Dark Hero |
| SKU Code | ROG Crosshair VIII Dark Hero |
| GTIN / EAN | 192876961629 |
