ASUS ROG Crosshair VIII Impact AM4 Mini DTX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Crosshair VIII Impact is a Mini DTX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).
- Amd Am4 Socket: Ready For 2Nd, And 3Rd Gen Amd Ryzen Processors And Upto Two M.2 Drives, USB 3.2 Gen2, And Amd Storemi To Maximize Connectivity And Speed
- Mini DTX Form Factor: 8.0 Inch X 6.7 Inch, 1 Inch Taller Than Mini Itx Fits Into Any Mini Itx Chassis That Support Two Slot Graphic Cards
- Superb Performance: Support Pcie 4.0, 10 Teamed Up Power Stages, 4800+ Ghz DDR4 Memory Overclocking Performance With Optic Mem III

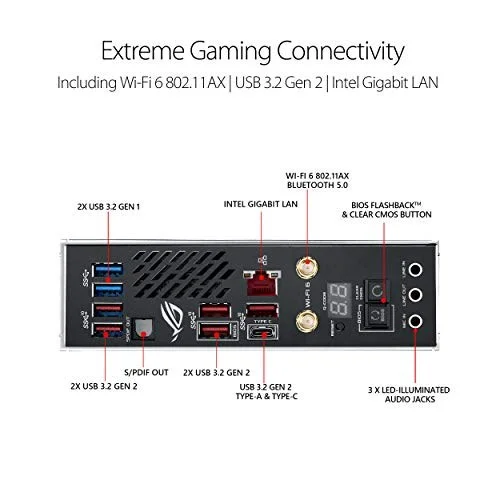

- Next Gen Gaming Connectivity: On Board Wi Fi 6 (802.11Ax) With Mu Mimo Support And Intel Gigabit Ethernet With Asus Languard Supports Gamefirst V Technology
- Comprehensive Cooling Solution: Features An Actively Cooled Vrm And Chipset Combo Heatsink Supplemented By A Full Sized Aluminum Backplate And Rog Water Cooling Zone Easy Integration With A Custom Water Cooling Loop

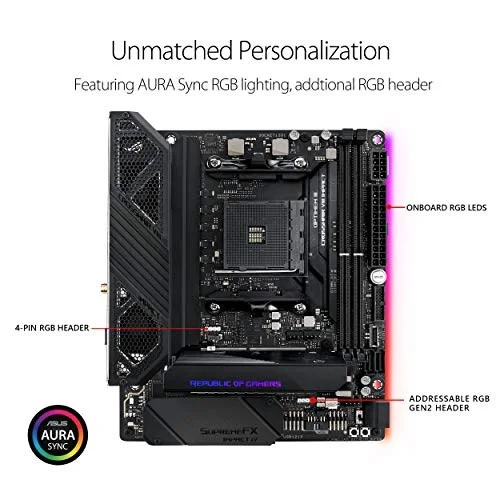

- Unmatched Personalization: Asus Exclusive Aura Sync Rgb Lighting, Including Rgb Headers And Gen; 2 Addressable Headers
- Diy Friendly Design: Pre Mounted I/O Shield, Asus Safe Slot And Impact Control Card Iv, Which Adds Bios Flashback, Clr Cmos, Q Code And Flexkey Functionality
- Industry Leading Rog Audio: Supremefx Impact Iv Audio Card With Supremefx S1220 And Ess Sabre9023 Provide Enthusiast Grade Audio Performance
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Crosshair VIII Impact Crosshair VIII Impact 90MB11Q0-M0EAY0 90MB11Q0-M0AAY0 |
| Launch Date | September 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | Mini DTX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Crosshair VIII Impact |
| SKU Code | ROG Crosshair VIII Impact |
| GTIN / EAN | 192876372555 |
