Description

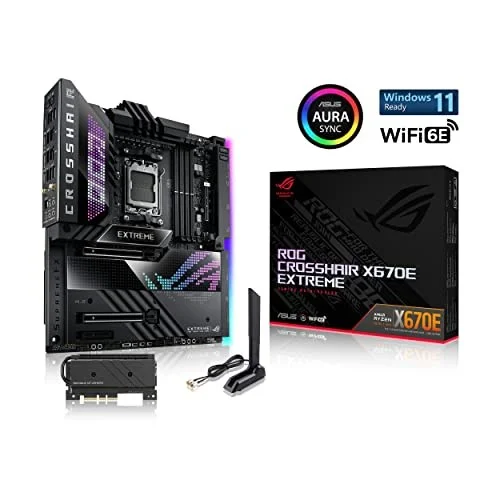

The ASUS ROG Crosshair X670E Extreme is a EATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).
- AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration.

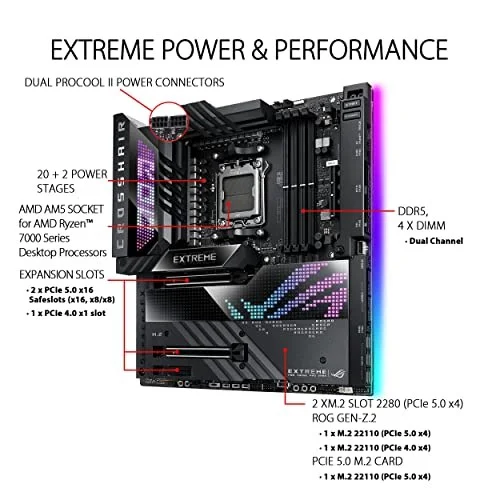

- Robust Power Solution: 20 + 2 teamed power stages rated for 110 A, MicroFine alloy chokes, premium metallic capacitors, and ProCool II power connectors.

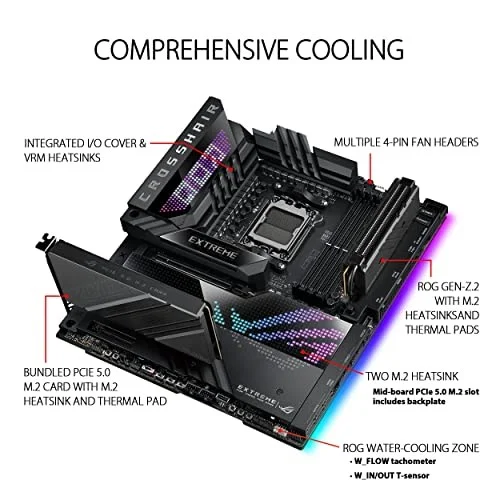

- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, five M.2 heatsinks, and dual M.2 with embedded backplates, and ROG Water-Cooling Zone.

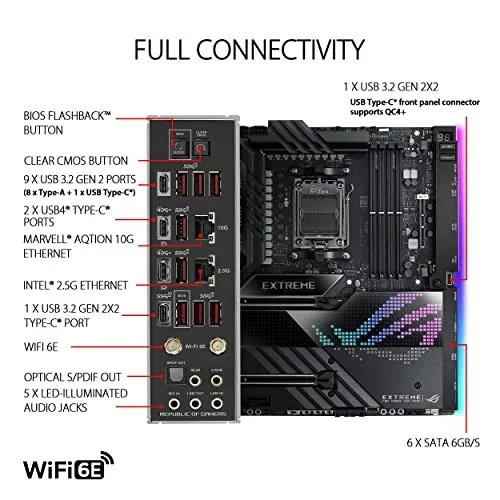

- High-Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG CROSSHAIR X670E EXTREME CROSSHAIR X670E EXTREME 90MB1B10-M0AAY0 |
| Launch Date | September 2022 |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG CROSSHAIR X670E EXTREME |
| SKU Code | ROG CROSSHAIR X670E EXTREME |
| GTIN / EAN | 195553847858 |
