ASUS ROG Crosshair X670E Hero AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Crosshair X670E Hero is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).
- AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive tools including AI Cooling II and Two-Way AI Noise Cancelation for easy configuration

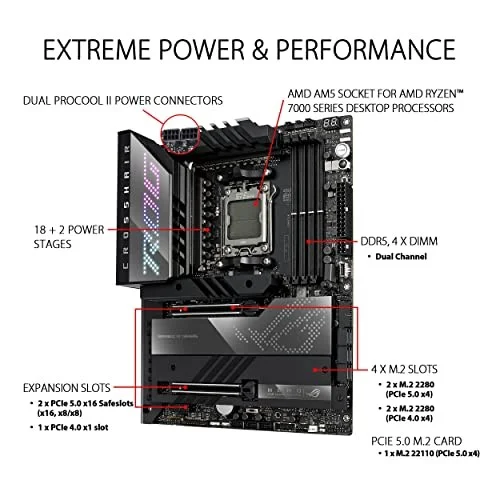

- Robust Power Solution: 18 + 2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

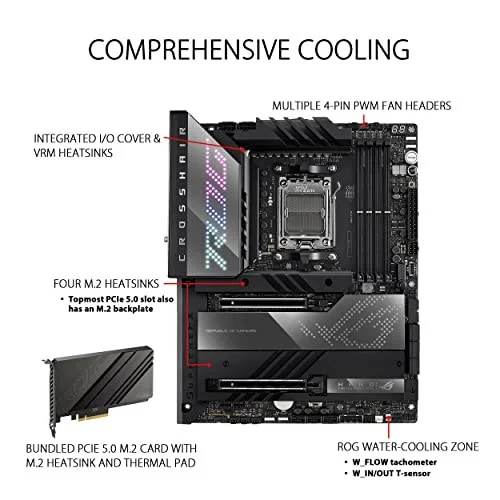

- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks and three with embedded backplates, plus the ROG Water Cooling Zone.
- High-Performance Networking: Onboard Wi-Fi 6E, Intel 2.5 Gb Ethernet, and ASUS LANGuard.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG CROSSHAIR X670E HERO 90MB1BC0-M0AAY0 90MB1BC0-MVAAY0 |
| Launch Date | September 2022 |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

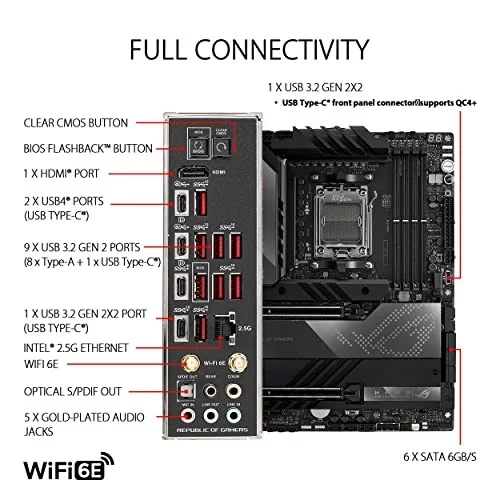

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG CROSSHAIR X670E HERO |
| SKU Code | ROG CROSSHAIR X670E HERO |
| GTIN / EAN | 195553862424 |
