ASUS ROG CROSSHAIR X870E HERO AM5 ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG CROSSHAIR X870E HERO is a ATX motherboard for AM5. It supports DDR5 memory up to 8600 MT/s (OC).
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

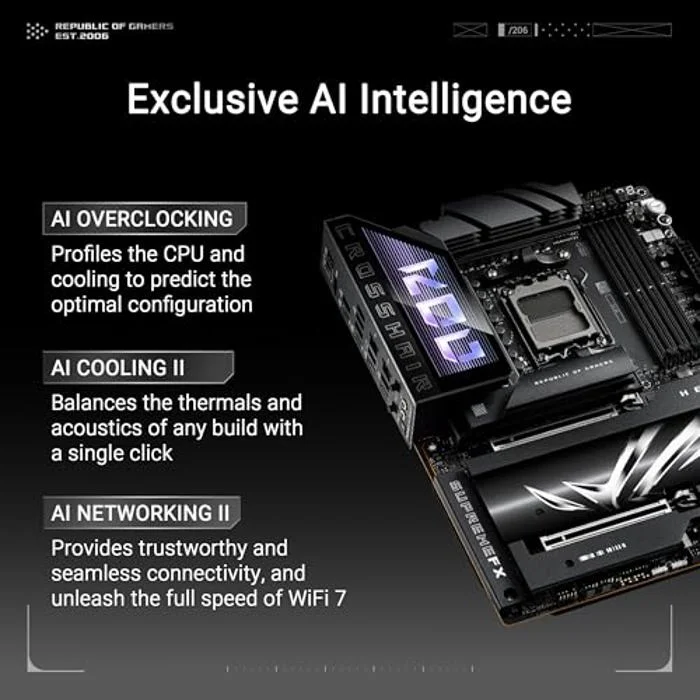

- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement

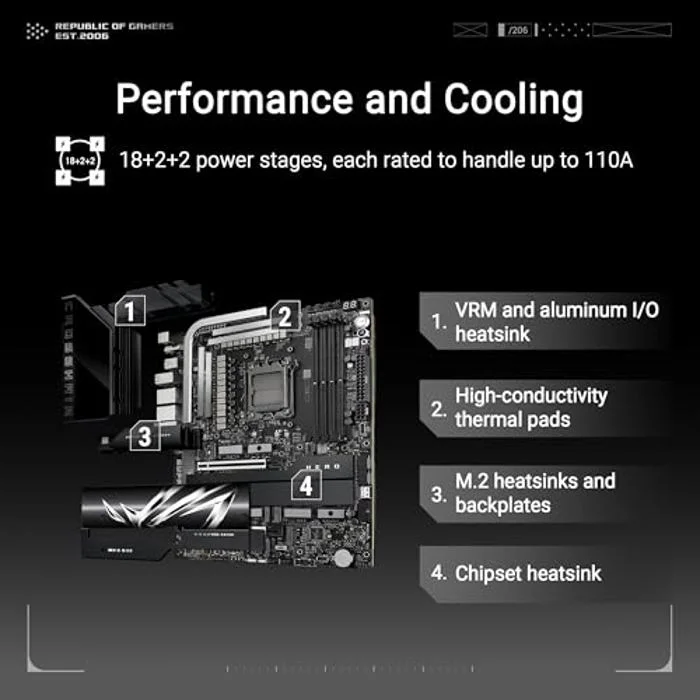

- Robust Power Solution: 18(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: Dual USB4 Type-C ports, two USB 20Gbps Type-C front-panel connectors (one featuring Quick Charge 4+ support for up to 60W, and USB Wattage Watcher), eight additional USB 10Gbps ports, SlimSAS connector with PCIe 4.0 x4 support, two PCIe 5.0 x16 SafeSlots, HDMI port
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet and Realtek 5 Gb Ethernet

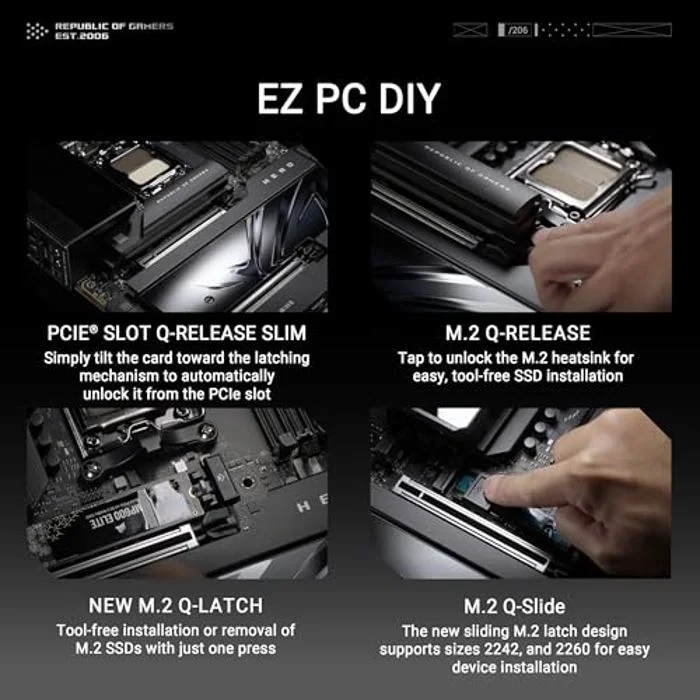

- DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG CROSSHAIR X870E HERO 90MB1IE0-M0AAY0 |
| Launch Date | September 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel X870E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 2 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG CROSSHAIR X870E HERO |
| SKU Code | ROG CROSSHAIR X870E HERO |
| GTIN / EAN | 197105710306 |
Price History (last 12 months)
Plots available price points within the past 12 months.
