Asus ROG Maximus IX Apex LGA1151 EATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

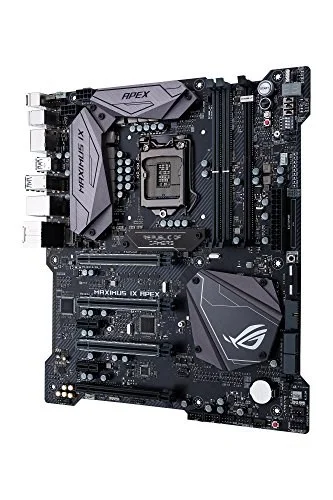

The Asus ROG Maximus IX Apex is a EATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- Designed for 7th generation Intel Core processors to maximize connectivity and speed with USB 3.1 Type A and Type C connections, vertically mounted dual M.2 and Intel Optane Memory compatibility
- Record-shattering overclocking design with features like dual BIOS chips, LN2 mode switch, water-cooling system headers, thermal sensor connectors and problem measurement points
- 5-Way Optimization with Auto-Tuning and Fan pert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Three patent-pending Safe Slots feature an injection molding process that integrates metal framing for stronger, firmly anchored Pie slots built for heavyweight GPUs

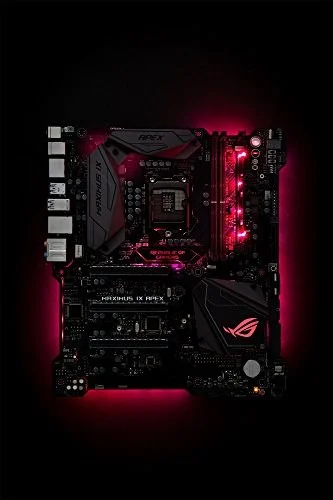

- Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and a 3D-printing friendly design
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | MAXIMUS IX APEX ROG MAXIMUS IX APEX |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAXIMUS IX APEX |
| SKU Code | MAXIMUS IX APEX |
| GTIN / EAN | 889349650684 |
