ASUS ROG MAXIMUS VIII IMPACT LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

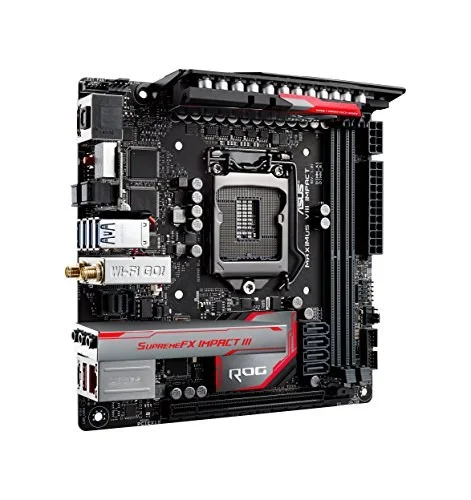

The ASUS ROG MAXIMUS VIII IMPACT is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 4000 MT/s (OC).
- LGA1151 socket for 6th-gen Intel Core desktop processors
- 5-Way Optimization with Auto-Tuning, Pro Clock and Impact Power for the ultimate OC experience
- SupremeFX Impact III with intuitive Sonic Studio II for discrete-caliber customizable gaming audio.
- Best-in-class Intel Gigabit Ethernet with , 2x2 802.11ac MU-MIMO Wi-Fi and Game First technologies for no-lag gameplay.
- NVMe U.2, SATA Express and USB 3.1 Type-A and Type-C for next-gen speed and devices. Please Note: Kindly refer the user manual given below for troubleshooting steps which is highly essential before use.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | MAXIMUS VIII IMPACT |
| Launch Date | November 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3800 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAXIMUS VIII IMPACT |
| SKU Code | MAXIMUS VIII IMPACT |
| GTIN / EAN | 889349213827 |
