ASUS ROG Maximus XI Extreme LGA1151 EATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Maximus XI Extreme is a EATX motherboard for LGA1151. It supports DDR4 memory up to 4400 MT/s (OC).
- Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with four M.2, USB 3.1 Gen 2, onboard 802.11ac Wi-Fi and ASUS Optimism II for better DRAM overclocking stability
- Revamped 5-way Optimization overclocks Intelligently based on smart prediction and thermal telemetry while Fan pert 4 delivers dynamic system cooling

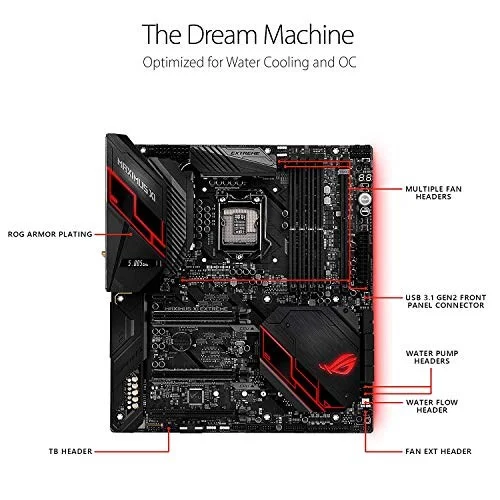

- Dedicated water cooling headers allow for comprehensive monitoring of water temperature and flow

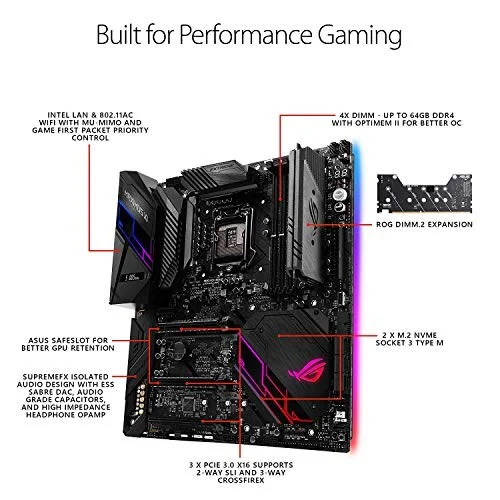

- Equipped with four M.2 slots to take full advantage of Intel first and NV Me RAID, featuring ROG DIMM.2 expansion

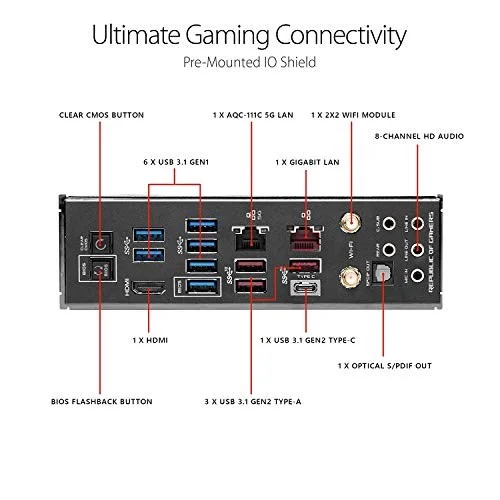

- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Maximus XI Extreme |
| Launch Date | October 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Maximus XI Extreme |
| SKU Code | ROG Maximus XI Extreme |
| GTIN / EAN | 192876122860 |
