Description
The ASUS ROG MAXIMUS XII EXTREME is a EATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

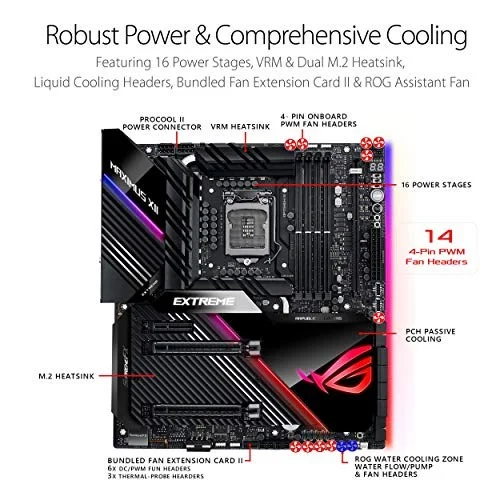

- Extreme Power Solution: Features 16 Infineon TDA21490 Power Stages, Each Rated To Handle 90 Amps, High-Quality Alloy Chokes And Durable Capacitors
- Superb Thermal Design: Extra-Large Heatsinks For VRM, Chipset And M. 2 Slots, Solid Steel Backplate, Multiple Fan Headers And A Bundled Fan Extension Card, Features AI Cooling To Balance Thermals And Acoustics By Reducing Fan Speeds And Maintaining A 5 Celsius Delta

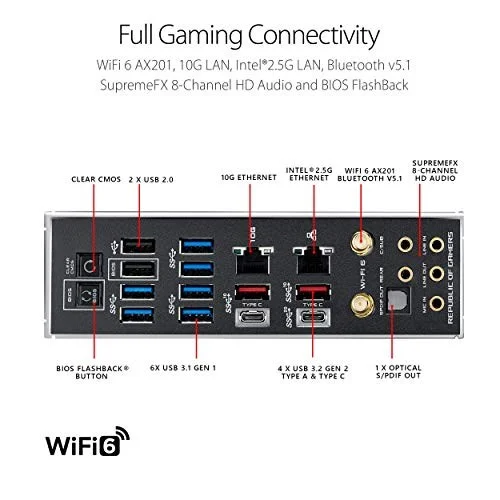

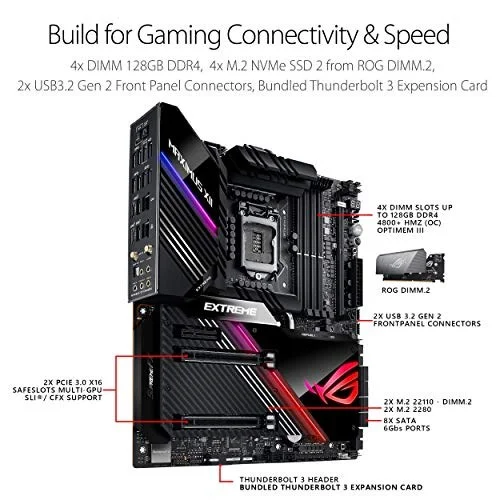

- Fastest Gaming Connectivity: Intel Wifi 6 AX201 (802. 11 Ax), Dual Ethernet With Marvell Aqtion 10Gb And Intel 2. 5Gb Ethernet With Langaurd Technology, Quad M. 2 Slots With Dimm. 2, 2X USB 3. 2 Gen 2X2 Front Panel Connectors

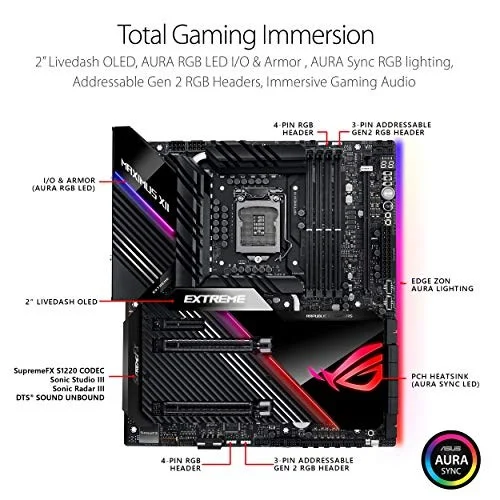

- Unmatched Personalization: 2” Livedash OLED, ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen 2 Addressable Headers.
- Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx S1220A Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action

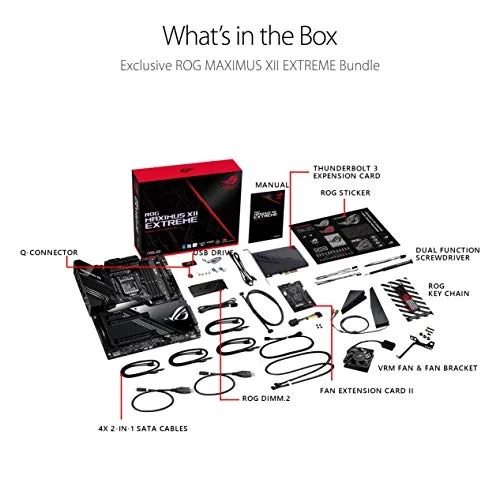

- Exclusive ROG Bundle: 1X Fan Extension Card II , 1X Thunderboltex 3-TR Card, 1X Fan Bracket, 1X ROG Assistant Fan( 40Mm), 1X ROG Multi-Bit Screwdriver Come With The Motherboard Package
Specifications
Manufacturer | ASUS |
---|---|
Model Number | ROG MAXIMUS XII EXTREME 90MB12J0-M0EAY0 |
Launch Date | May 2020 |
CPU Socket | LGA1200 |
Chipset Model | Intel Z490 |
Board Size / Form Factor | EATX |
Supported Memory Type | DDR4 |
DIMM Slots | 4 |
Maximum RAM Capacity | 128 GB |
Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 (OC) |
ECC Memory Support | No |
Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
PCIe x16 (Qty) | 2 |
PCIe x4 (Qty) | 1 |
PCIe x1 (Qty) | 0 |
M.2 Slot Count | 4 × M.2 |
M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
SATA III Ports | 8 × SATA 6Gbps |
SATA Express Ports | 0 |
Wired Networking (LAN) | |
Onboard Wi-Fi | Yes |
Wi-Fi Standard | 6 (802.11ax) |
Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
Internal USB 3.2 Gen 2x2 Headers | 0 |
Internal USB 3.2 Gen 2 Headers | 2 |
Internal USB 3.2 Gen 1 Headers | 2 |
Internal USB 2.0 Headers | 2 |
NVIDIA SLI | Yes |
AMD CrossFire | Yes |
RAID Capability | Yes |
Back-Connect Layout | No |
Manufacturer Part Number (MPN) | ROG MAXIMUS XII EXTREME |
SKU Code | ROG MAXIMUS XII EXTREME |
GTIN / EAN | 192876663943 |
