ASUS ROG MAXIMUS XII FORMULA LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG MAXIMUS XII FORMULA is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

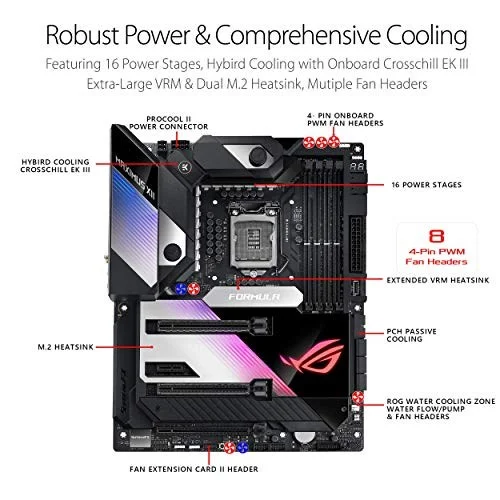

- Extreme Power Solution: Features 16 Infineon Power Stages, Each Rated To Handle 70 Amps, High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power Even When Push The CPU Performance To The Limit
- Hybrid Cooling System: Crosschill EK III VRM Block And Extra-Large Heatsinks For VRM, Chipset And M. 2 Slots, Solid Steel Backplate Lets You Cool With Air And Water

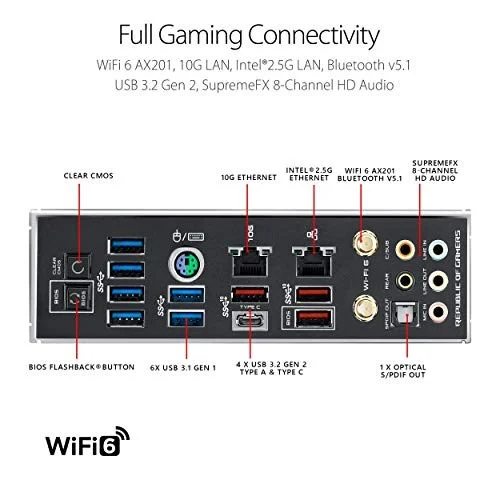

- Fastest Gaming Connectivity: Intel Wifi 6 AX201 (802. 11 Ax), Dual Ethernet With Marvell Aqtion 10Gb And Intel 2. 5Gb Ethernet With Langaurd Technology, Triple M. 2 Slots, USB 3. 2 Gen 2X2 Front Panel Connectors
- Unmatched Personalization: 2” Livedash OLED, ASUS-Exclusive Aura Sync RGB Lighting, Including 2X 4-Pin RGB Header And 2X Gen 2 Addressable RGB Headers
- Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx S1220A Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action

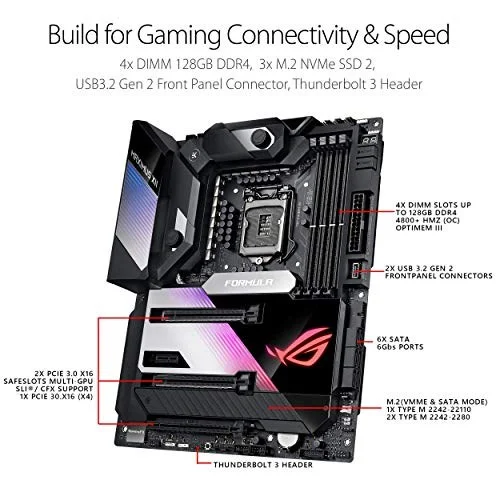

Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS XII FORMULA 90MB1370-M0EAY0 90MB1370-M0AAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS XII FORMULA |
| SKU Code | ROG MAXIMUS XII FORMULA |
| GTIN / EAN | 192876664902 |
