ASUS ROG MAXIMUS XII HERO (WI-FI) LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG MAXIMUS XII HERO (WI-FI) is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

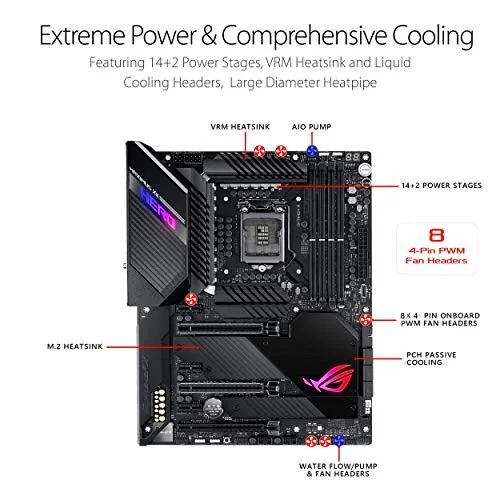

- Robust Power Solution: 14+2 Power Stages With Procool II Power Connector, High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power Even When Push The CPU Performance To The Limit
- Optimized Thermal Design: Except Comprehensive Heatsink, Heatpipe And Fan Headers, Features Low-Noise AI Cooling To Balance Thermals And Acoustics By Reducing Fan Speeds And Maintaining A 5 Celsius Delta

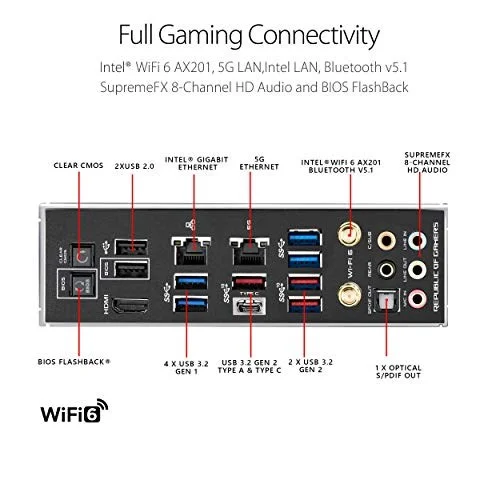

- Fastest Gaming Connectivity: Dual Ethernet With 5Gb And Gigabit Ethernet , Langaurd, Dual M. 2, USB 3. 2 Gen 2, And Intel Wifi 6 AX201 (802. 11 Ax)
- Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx S1220A Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action

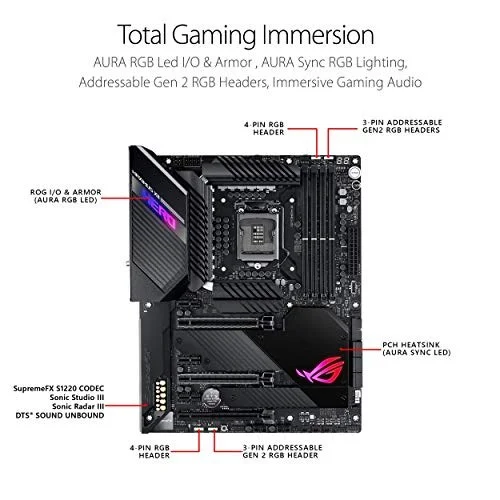

- Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen 2 Addressable Headers
- DIY Friendly Design: Pre-Mounted I/O Shield, BIOS Flashback, Q-Code And Flexkey
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS XII HERO (WI-FI) 90MB12R0-M0EAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS XII HERO (WI-FI) |
| SKU Code | ROG MAXIMUS XII HERO (WI-FI) |
| GTIN / EAN | 192876664100 |
