ASUS ROG Maximus XIII Apex LGA1200 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Maximus XIII Apex is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors
- AI Motherboard : AI Overclocking, AI cooling, AI networking and AI noise cancelation

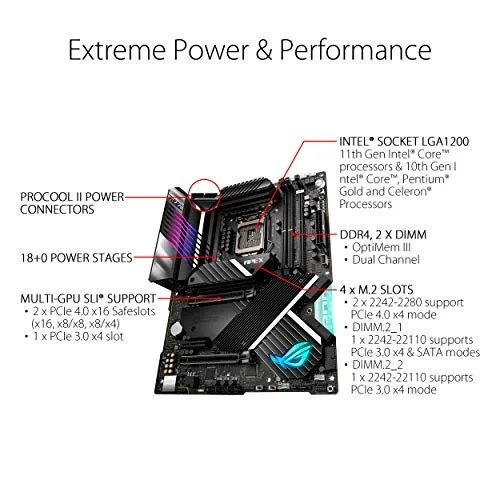

- Robust Power Solution: 18 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes, and 10K Japanese-made black metallic capacitors

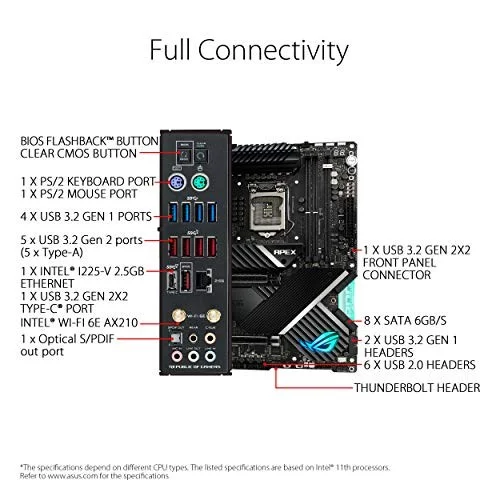

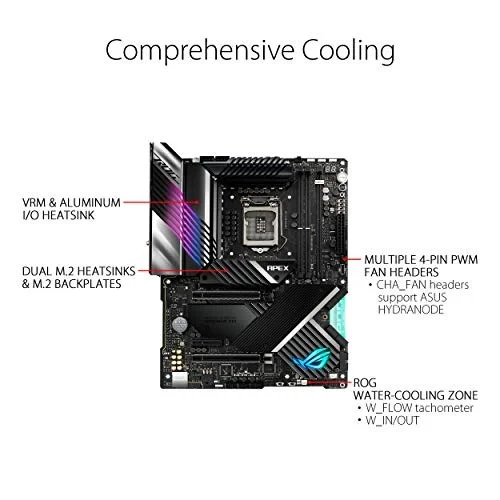

- Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, M.2 heatsinks with embedded backplates, and ROG Water-Cooling Zone; High-performance Networking: Onboard Wi-Fi 6E (802.11ax), Intel 2.5 Gb Ethernet and ASUS LANGuard; Fastest Gaming Connectivity: PCIe 4.0, quad M.2, USB 3.2 Gen 2x2 front-panel connector

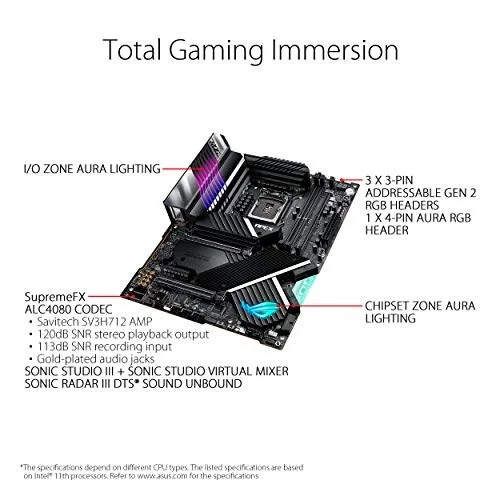

- Gaming Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III; DIY-friendly Design: Pre-mounted I/O shield, V-Latch switch, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder; Renowned Software: Bundled 1 year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86; Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG Maximus XIII Apex 90MB16E0-M0EAY0 90MB16E0-M0AAY0 |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG Maximus XIII Apex |
| SKU Code | ROG Maximus XIII Apex |
| GTIN / EAN | 195553145442 |
