Asus ROG Maximus XIII Extreme Glacial LGA1200 EATX DDR4 128 GB Motherboard
Seller | Shipping | Promo | Price |
---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG Maximus XIII Extreme Glacial is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 11Th Gen Intel Core Processors

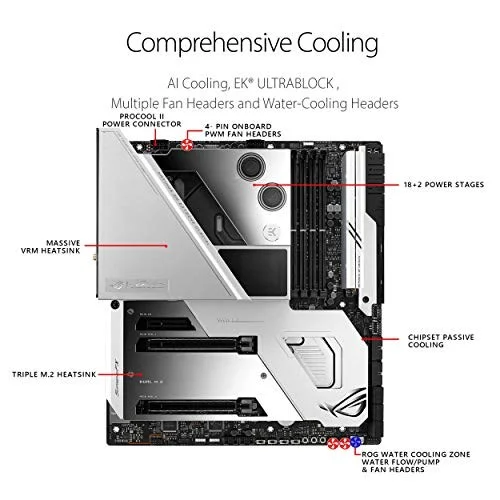

- Optimized Thermal Design: Integrated EK Water Block That Cools VRM, CPU And PCH; High-Conductivity Thermal Pads, Five M.2 Heatsinks With Embedded Backplates And ROG Water-Cooling Zone

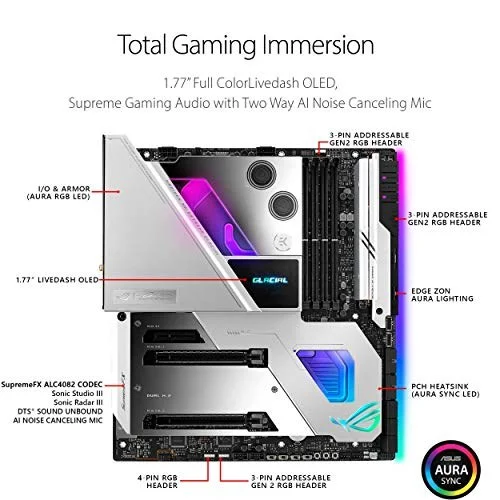

- AI Motherboard : AI Overclocking, AI Cooling, AI Networking And AI Noise Cancelation; Unmatched Personalization: 2” Livedash Color OLED, ASUS-Exclusive Aura Sync RGB Lighting, Including One RGB Header And Three Addressable Gen 2 RGB Headers; DIY-Friendly Design: Pre-Mounted I/O Shield, V_Latch Switch, BIOS Flashback, Q-Code, Flexkey, Q-Connector, Safeslot And Graphics Card Holder

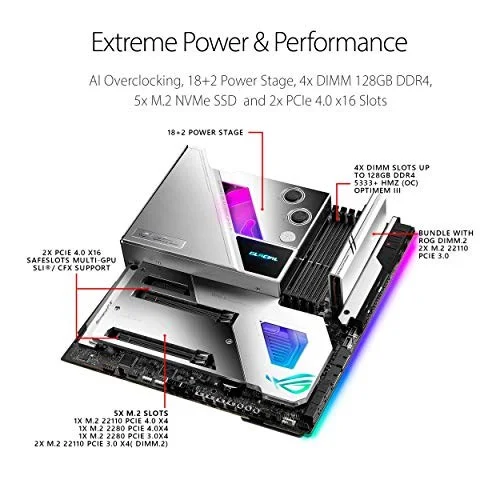

- Extreme Power Solution: 18+2 Teamed Power Stages - Each Rated At 100 Amps, Procool II Power Connectors, Microfine Alloy Chokes And 10K Japanese-Made Black Metallic Capacitors; Fattest Gaming Connectivity: Pcie 4.0, Five M.2 Slots, USB 3.2 Gen 2X2 Front-Panel Connector, Dual Thunderbolt 4 USB-C ;Industry-Leading Gaming Audio & AI Noise Cancelation: High Fidelity Audio With The Supremefx ALC4082 CODECESS, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action.Communicate Clearly With ASUS AI Noise Cancelation Technology

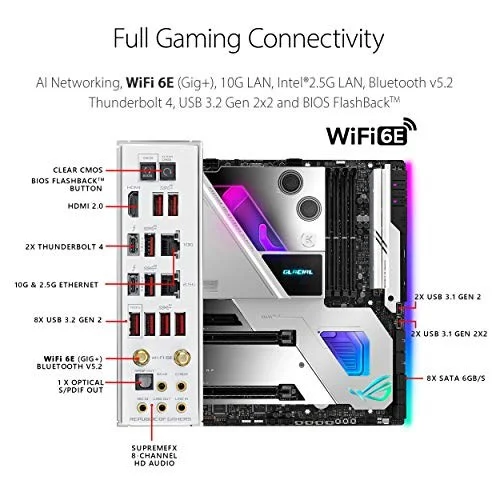

- Superb Thermal Design: Enlarged VRM Heatsinks Plus Integrated Aluminum I/O Cover, High-Conductivity Thermal Pad, Five M.2 Heatsinks With Embedded Backplates And ROG Water-Cooling Zone Future Proof Gaming Networking: Intel Wifi 6E AX210 Pair With ROG Rapture GT-AXE11000 To Enjoy World’S First 6Hgz Wireless Transfer Speed, Dual Ethernet With Marvell Aqtion 10Gb And Intel 2.5Gb Ethernet;
Specifications
Manufacturer | ASUS |
---|---|
Model Number | ROG MAXIMUS XIII EXTREME GLACIAL 90MB1730-M0AAY0 |
Launch Date | March 2021 |
CPU Socket | LGA1200 |
Chipset Model | Intel Z590 |
Board Size / Form Factor | EATX |
Supported Memory Type | DDR4 |
DIMM Slots | 4 |
Maximum RAM Capacity | 128 GB |
Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC) |
ECC Memory Support | No |
Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
PCIe x16 (Qty) | 2 |
PCIe x4 (Qty) | 1 |
PCIe x1 (Qty) | 0 |
M.2 Slot Count | 5 × M.2 |
M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
SATA III Ports | 6 × SATA 6Gbps |
SATA Express Ports | 0 |
Wired Networking (LAN) | |
Onboard Wi-Fi | Yes |
Wi-Fi Standard | 6 (802.11ax) |
Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
Internal USB 3.2 Gen 2x2 Headers | 0 |
Internal USB 3.2 Gen 2 Headers | 1 |
Internal USB 3.2 Gen 1 Headers | 2 |
Internal USB 2.0 Headers | 2 |
NVIDIA SLI | Yes |
AMD CrossFire | No |
RAID Capability | Yes |
Back-Connect Layout | No |
Manufacturer Part Number (MPN) | ROG MAXIMUS XIII EXTREME GLACIAL |
SKU Code | ROG MAXIMUS XIII EXTREME GLACIAL |
GTIN / EAN | 195553093910 |
