Asus ROG MAXIMUS Z690 EXTREME LGA1700 EATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG MAXIMUS Z690 EXTREME is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

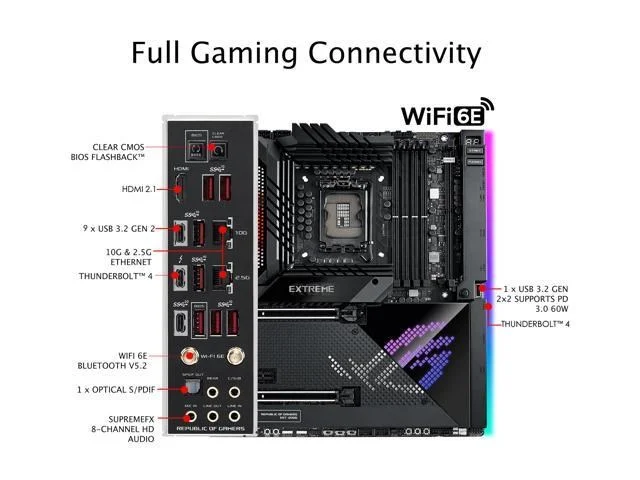

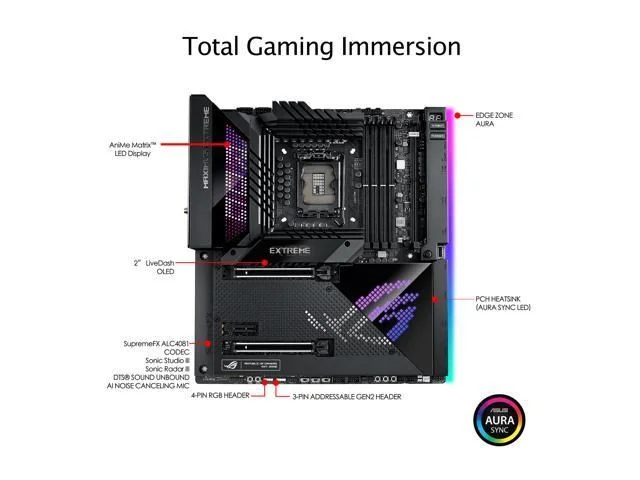

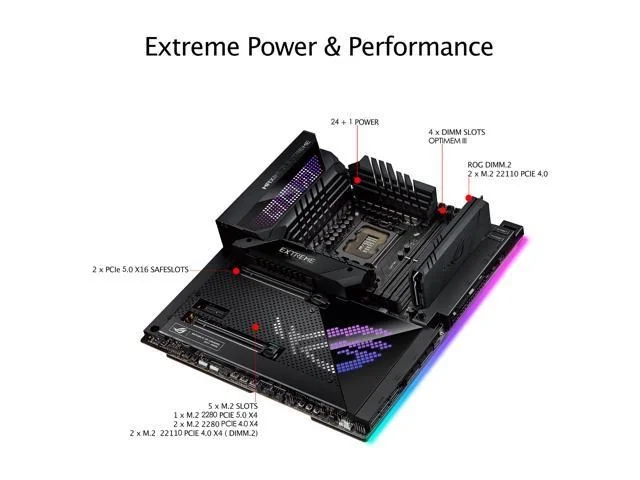

- ASUS ROG Maximus Z690 Extreme (WiFi 6E) LGA 1700 (Intel 12th Gen) EATX Gaming Motherboard (PCIe 5.0, DDR5, 24+1 105A Power Stages, 5x M.2, 1x PCIe 5.0 M.2, 10Gb&2.5Gb LAN, 2x Thunderbolt 4 Onboard) Memory Standard: DDR5 Audio Chipset: ROG SupremeFX ALC4082 PCI Express 5.0 x16: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** * Please check PCIe bifurcation table in support site. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors PCI Express x1: 1 x PCIe 3.0 x1 slot Part Number: 90MB18H0-M0AAY0
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG MAXIMUS Z690 EXTREME MAXIMUS Z690 EXTREME 90MB1A60-M0EAY0 90MB18H0-M0AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z690 EXTREME |
| SKU Code | ROG MAXIMUS Z690 EXTREME |
| GTIN / EAN | 4711081462750 |
