ASUS ROG Maximus Z690 Hero LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

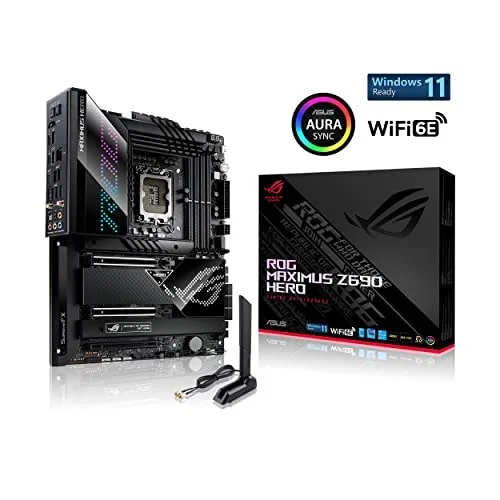

The ASUS ROG Maximus Z690 Hero is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking(GameFirst VI) and Two-Way AI Noise-Cancelation for easy configuration

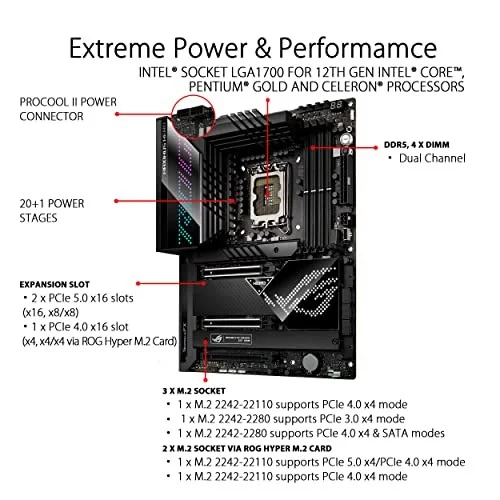

- Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

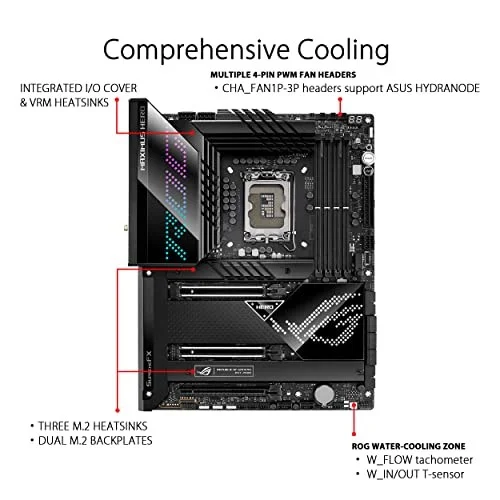

- Optimized Thermal Design: VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and dual with embedded backplates, and ROG Water-Cooling Zone
- High-performance Networking: Onboard WiFi 6E,Bluetooth V5.2, Intel 2.5Gb Ethernet, and ASUS LANGaurd
- Fastest Gaming Connectivity: PCIe 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector, 2xThunderbolt 4 (USB Type-C port).
- DIY-friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and Graphics Card Holder
- Industry-leading Audio: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for pinpoint positioning and dynamics
- ROG Aesthetic: I/O cover with Polymo Lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- Renowned Software: Bundled 1 year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS Z690 HERO MAXIMUS Z690 HERO 90MB18E0-M0EAY0 90MB18E0-M0AAY0 |
| Launch Date | November 2021 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z690 HERO |
| SKU Code | ROG MAXIMUS Z690 HERO |
| GTIN / EAN | 195553455497 |
