Asus ROG Maximus Z690 Hero EVA LGA1700 ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG Maximus Z690 Hero EVA is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors. 11. Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.

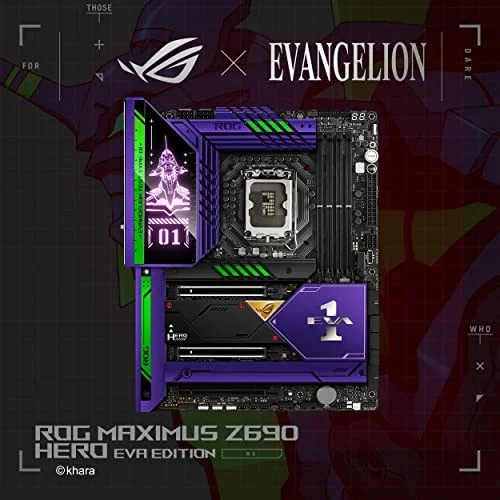

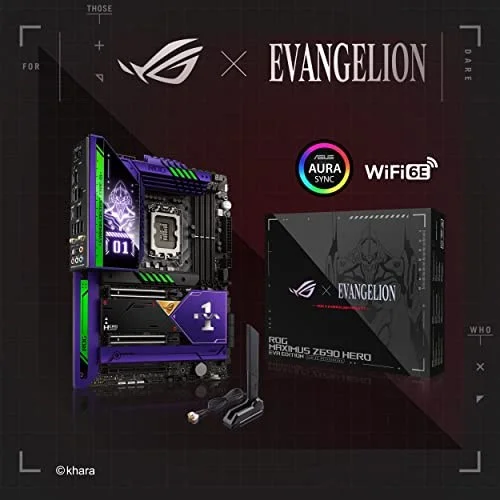

- EVANGELION aesthetics: Co-branded with EVANGELION to feature the unique design of the EVA-01 displayed on the PCB, heatsink, nameplate and packaging.
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration.
- Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors.

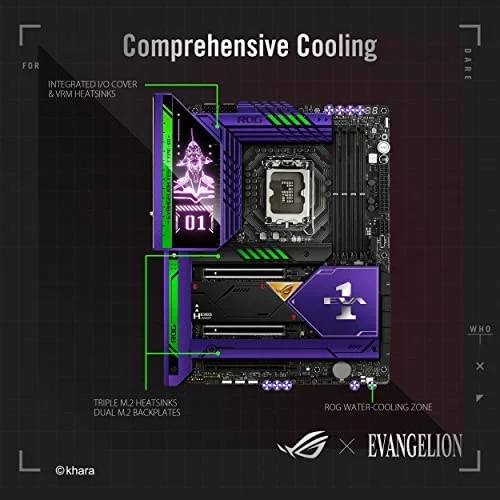

- Optimized Thermal Design: VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and dual with embedded backplates, plus ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks.
- High Performance Networking: Onboard Wi-Fi 6E, Intel 2.5Gb Ethernet, and ASUS LANGuard.

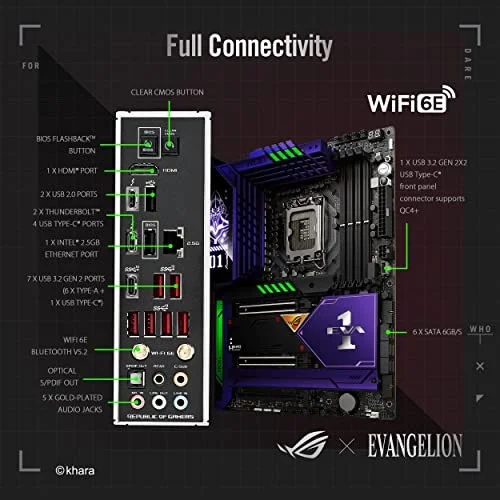

- Fastest Gaming Connectivity: PCIe 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector, Thunderbolt 4 (USB Type-C port).
- Industry Leading Audio: ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for pinpoint positioning and dynamics.
- Unmatched Personalization: I/O cover with Polymo lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.
- DIY Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release , BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and ROG graphics card holder
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS Z690 HERO EVA EDITION MAXIMUS Z690 HERO EVA ROG MAXIMUS Z690 HERO EVA MAXIMUS Z690 HERO EVA EDITION 90MB1BX0-M0AAY0 |
| Launch Date | June 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z690 HERO EVA EDITION |
| SKU Code | ROG MAXIMUS Z690 HERO EVA EDITION |
| GTIN / EAN | 195553762458 |
