Asus ROG MAXIMUS Z790 APEX LGA1700 ATX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG MAXIMUS Z790 APEX is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

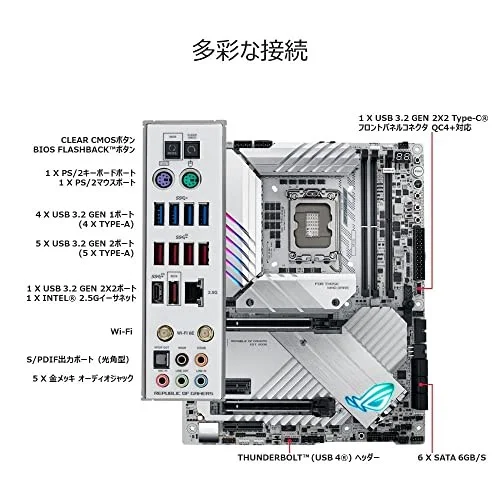

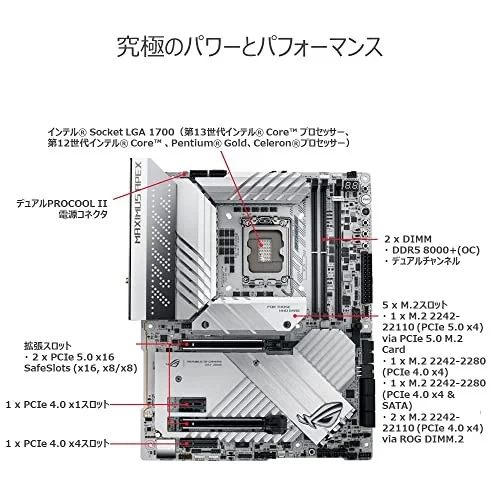

- ASUS ROG MAXIMUS Z790 APEX LGA 1700 ATX Motherboard - Chipset: Intel Z790 - Socket: LGA1700 - RAM: 2x DDR5 Slots (Up to 64GB, 8000MHz OC) - Expansion Slots: 2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 - Storage: 6x SATA 6Gb/s, 5x M.2 PCIe (1x Gen5, 4x Gen4) - I/O: USB-C 3.2 Gen 2x2, 5x USB-A 3.2 Gen2, 4x USB-A 3.2 Gen1, Audio jacks, Optical S/PDIF out, PS/2 Keyboard, PS/2 Mouse, WiFi Module - Network: WiFi 6E + BT 5.3, RJ45 2.5G - Form Factor: ATX
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG MAXIMUS Z790 APEX 90MB1CF0-M0EAY0 90MB1CF0-M0UAY0 90MB1CF0-M0AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z790 APEX |
| SKU Code | ROG MAXIMUS Z790 APEX |
| GTIN / EAN | 195553964395 |
