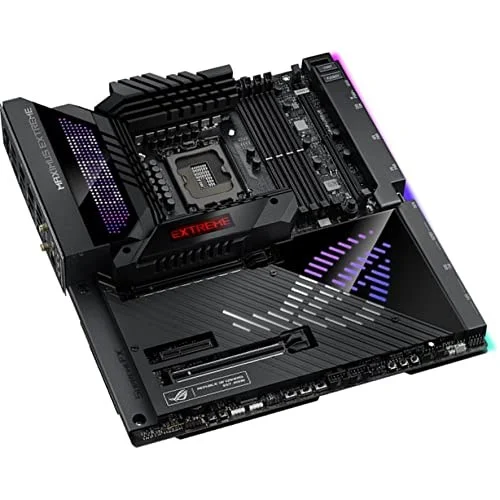

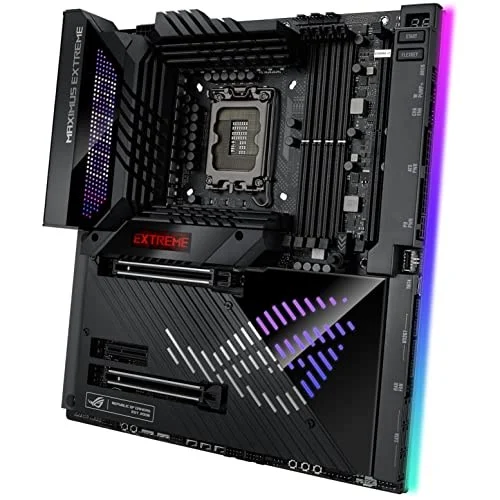

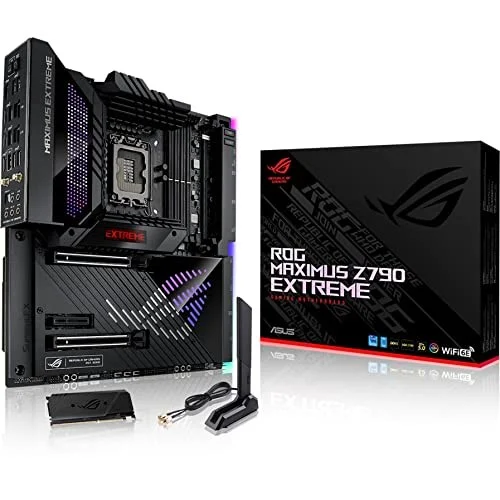

Asus ROG MAXIMUS Z790 EXTREME LGA1700 EATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG MAXIMUS Z790 EXTREME is a EATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).
- ASUS ROG Maximus Z790 Extreme (WiFi 6E) LGA 1700(Intel12th&13th Gen) EATX gaming motherboard (PCIe 5.0, DDR5,24+1 105A power stages,5x M.2,1xPCIe 5.0 M.2,10Gb&2.5Gb LAN,2xThunderbolt 4 onboard, AniMe Matrix LED,USB 3.2 Gen 2x2 front-panel) Memory Standard: DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: Intel 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** * Please check the PCIe bifurcation table on the ASUS support site. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG MAXIMUS Z790 EXTREME 90MB1CB0-M0AAY0 |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z790 EXTREME |
| SKU Code | ROG MAXIMUS Z790 EXTREME |
| GTIN / EAN | 195553938259 |
Price History (last 12 months)
Plots available price points within the past 12 months.
