ASUS ROG Maximus Z790 Formula LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Maximus Z790 Formula is a ATX motherboard for LGA1700. It supports DDR5 memory up to 8000 MT/s (OC).
- Intel LGA 1700 Socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

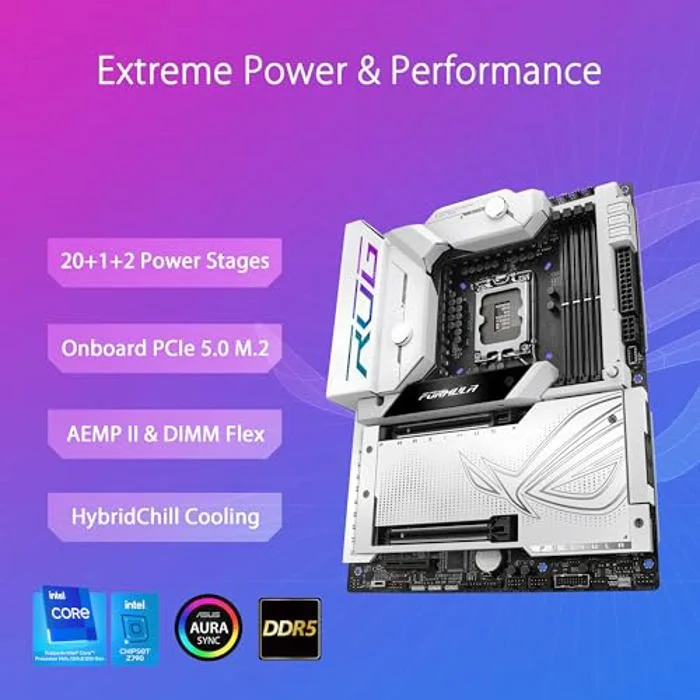

- Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

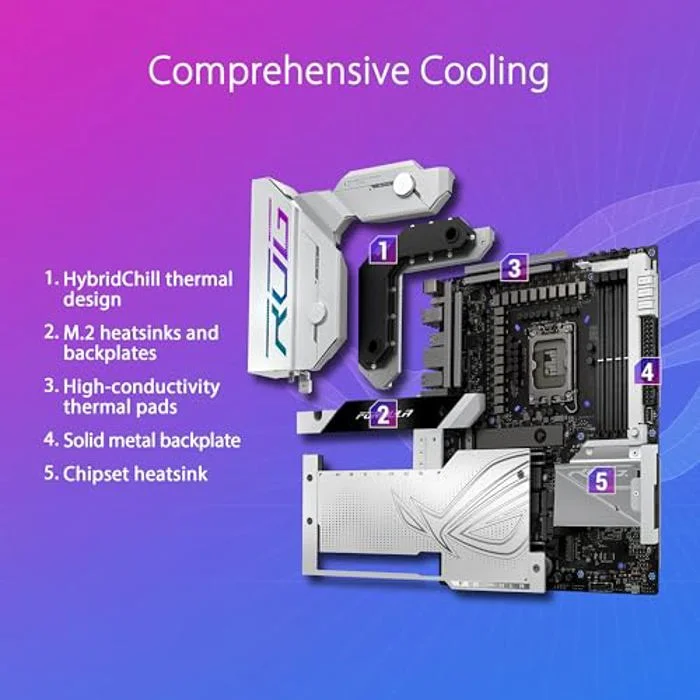

- Optimized VRM Thermals: Enlarged VRM heatsinks with premium HybridChill cooling, M.2 heatsinks with triple embedded backplates, high-conductivity thermal pads, and ROG Water-Cooling Zone
- Latest M.2 Support: Onboard PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS Z790 FORMULA 90MB1FS0-M0EAY0 90MB1FS0-M0AAY0 |
| Launch Date | October 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z790 FORMULA |
| SKU Code | ROG MAXIMUS Z790 FORMULA |
| GTIN / EAN | 197105360969 |
Price History (last 12 months)
Plots available price points within the past 12 months.
