Asus ROG MAXIMUS Z790 HERO LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

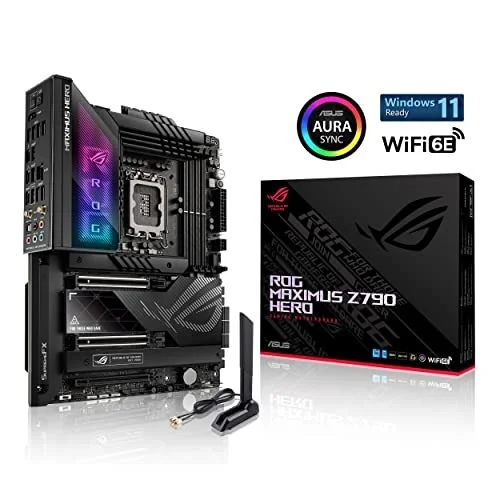

The Asus ROG MAXIMUS Z790 HERO is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).

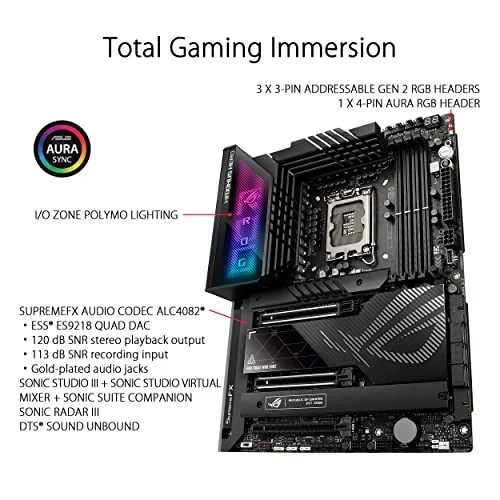

- ASUS ROG Maximus Z790 Hero (WiFi 6E) LGA 1700 (Intel 13th&12th Gen) ATX Gaming Motherboard (PCIe 5.0, DDR5, 20+1 Power Stages, 2.5Gb LAN, Bluetooth V5.2, 5x M.2/NVMe SSD, 2x Thunderbolt 4, Bundle with PCIe 5.0 Hyper M.2 Card) Memory Standard: Supports DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS ES9218 QUAD DAC
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG MAXIMUS Z790 HERO 90MB1CI0-M0AAY0 |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

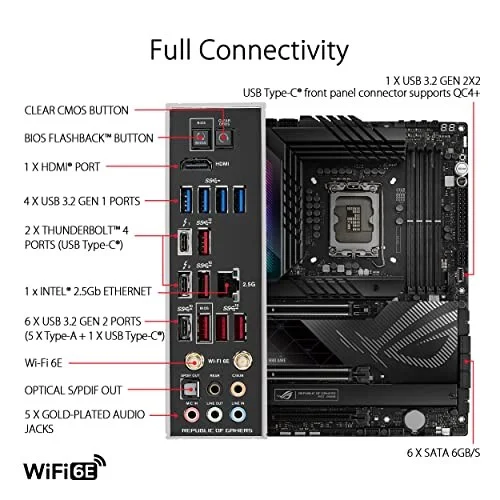

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z790 HERO |
| SKU Code | ROG MAXIMUS Z790 HERO |
| GTIN / EAN | 195553931465 |
