ASUS ROG MAXIMUS Z890 EXTREME LGA1851 EATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG MAXIMUS Z890 EXTREME is a EATX motherboard for LGA1851. It supports DDR5 memory up to 8800 MT/s (OC).
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Supports Intel Core Ultra Processors (series 2)
- Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
- Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
- Robust Power Solution: 24(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

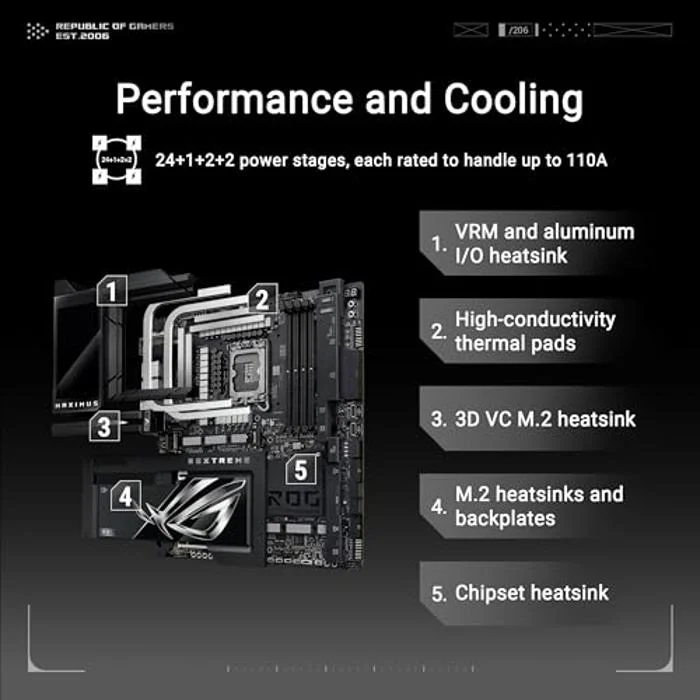

- Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by an U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads, and 3D VC M.2 Heatsink for a PCIe 5.0 M.2 slot
- Latest M.2 Support: Three PCIe 5.0 M.2 slots and one PCIe 4.0 M.2 slot onboard with ROG M.2 PowerBoost, two PCIe 4.0 M.2 slots on ROG Q-DIMM.2 card, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt 5 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, eight additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Marvell 10 Gb Ethernet and Intel 2.5 Gb Ethernet

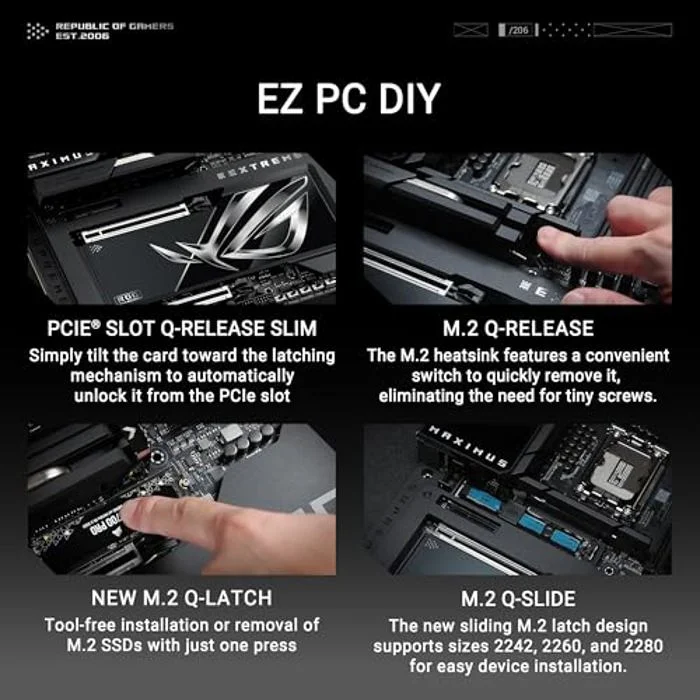

- DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG MAXIMUS Z890 EXTREME 90MB1IA0-M0AAY0 |
| Launch Date | October 2024 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel Z890 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 / DDR5-8800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 6 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG MAXIMUS Z890 EXTREME |
| SKU Code | ROG MAXIMUS Z890 EXTREME |
| GTIN / EAN | 197105754157 |
