Asus ROG RAMPAGE VI EXTREME LGA2066 EATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG RAMPAGE VI EXTREME is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4200 MT/s (OC).
- Designed for 7th generation Intel Core X-Series processors

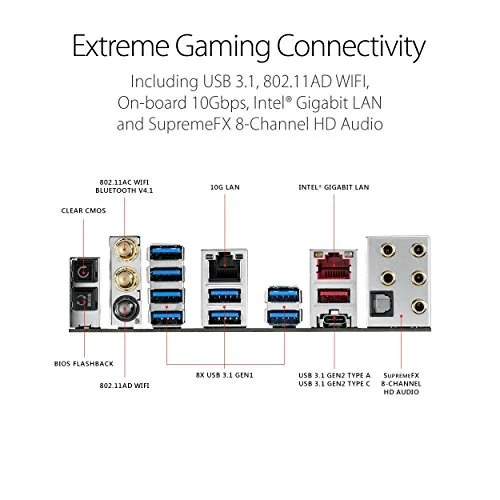

- Built for High Performance Networking featuring onboard 10G LAN, 802.11AD WiGig Wi-Fi for future wireless VR, and Intel Gigabit LAN with LAN Guard and GameFirst technology

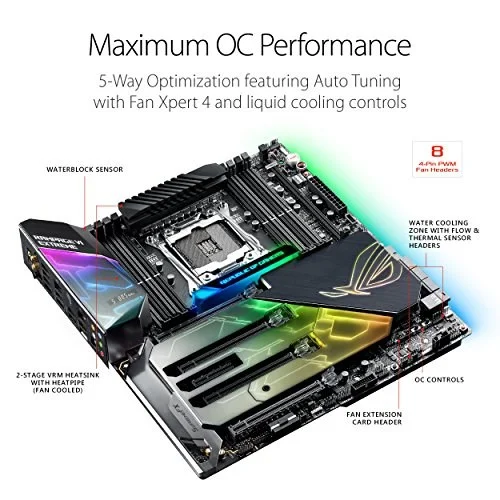

- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while thermal sensor, operating system-windows 10, 64-bit

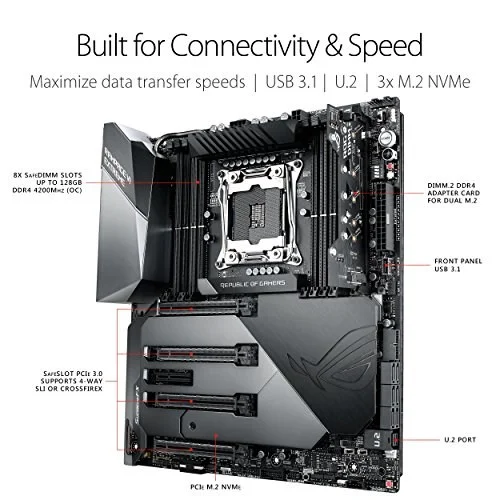

- Four Patent-pending Safe Slots feature an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs
- Unmatched Personalization with AURA Sync RGB lighting including two additional RGB headers, one addressable header, Live Dash OLED, and customizable backlit nameplate
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | RAMPAGE VI EXTREME ROG RAMPAGE VI EXTREME |
| Launch Date | |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | RAMPAGE VI EXTREME |
| SKU Code | RAMPAGE VI EXTREME |
| GTIN / EAN | 889349805534 |
