ASUS ROG RAMPAGE VI EXTREME ENCORE LGA2066 EATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

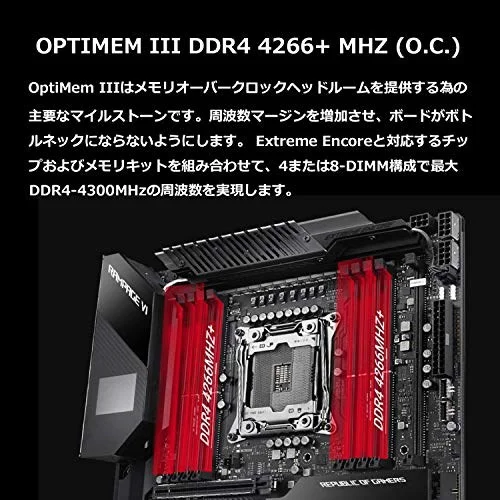

The ASUS ROG RAMPAGE VI EXTREME ENCORE is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).
- Intel X299 LGA 2066 Socket: Ready For The Latest Intel Core X-Series Processors To Maximize Connectivity And Speed With Up To 4X M. 2 Drives, USB 3. 2 Gen 2, Intel VROC And Intel Optane Memory Compatibility.

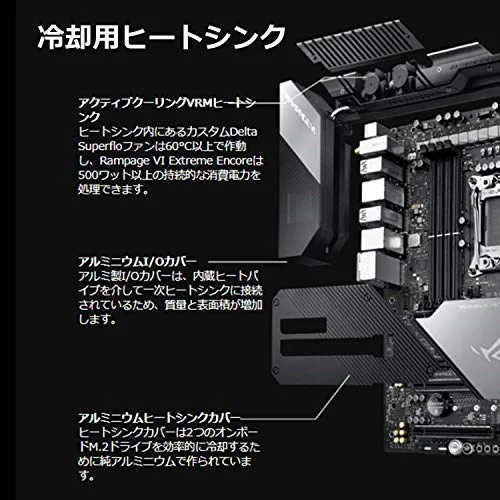

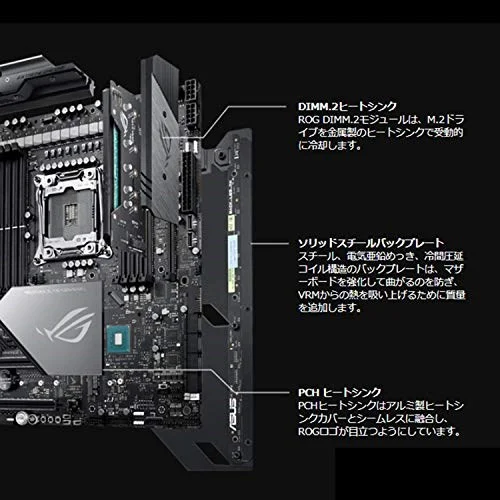

- Finest Power Delivery & Comprehensive Thermal Design: Optimized Power Solution With 16 Infineon TDA21472 Power Stages, Procool II Power Connectors, Microfine Alloy Chokes And 10K Capacitors, Active Cooling VRM Heatsink, Pcie-Zone M. 2 Aluminum Heatsink, Back Plate, Fan Extension Card II And Water-Cooling Zone.
- The Fastest Networking: Onboard Aquantia 10 Gaps Ethernet, Wi-Fi 6 (802. 11Ax) With MU-MIMO Support, And Gamefirst V Technology.
- Next Gen Gaming Connectivity: Features 4X M. 2, USB 3. 2 Gen 2X2 Ports And USB 3. 2 Gen 2 Front Panel Connector, 8X SATA 6 Gb/S Ports.
- Unmatched Personalization: Color OLED And ASUS-Exclusive Aura Sync RGB Lighting, Including Two Additional RGB Headers And Two Gen 2 RGB Addressable Headers
- DIY Friendly: ROG-Patented Pre-Mounted I/O Shield, Flexkey, ASUS Safeslot, ASUS Node Connector And BIOS Flashback For A Friendlier Building Experience
- Industry Leading Gaming Audio: Supremefx S1220 And ESS SABRE9018Q2C For Enthusiast-Grade Audio Performance Driven By Japanese Capacitors
- Ai Overclocking: Quickly Optimizes Your CPU Performance Based On The CPU And Cooler, Achieving Results That Are Extremely Close To Manual Tuning By Experts
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG RAMPAGE VI EXTREME ENCORE 90MB11K0-M0AAY0 |
| Launch Date | October 2019 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

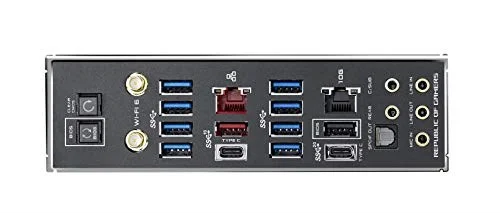

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 2 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG RAMPAGE VI EXTREME ENCORE |
| SKU Code | ROG RAMPAGE VI EXTREME ENCORE |
| GTIN / EAN | 192876478141 |
