ASUS ROG Rampage VI Extreme Omega LGA2066 EATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Rampage VI Extreme Omega is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

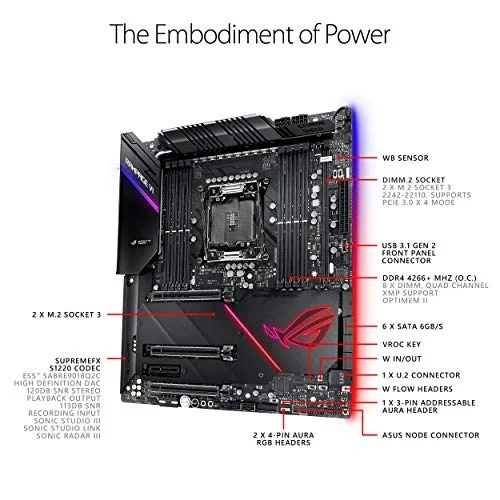

- Designed for 9th generation Intel Core X-Series processors to maximize connectivity and speed with up to four M.2 drives, USB 3.1 Gen 2, Intel VROC and Intel Optane Memory compatibility

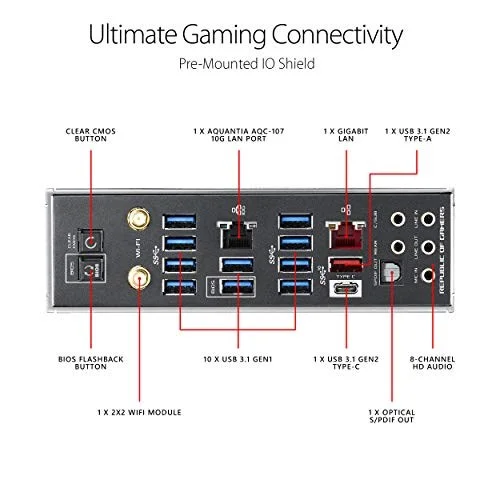

- Built for high performance networking featuring onboard Aquantia 10G LAN, 802.11AC Wi-Fi with MU-MIMO support and Intel Gigabit LAN with ASUS LANGuard and GameFirst V technologies
- 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while thermal sensors and watercooling headers provide dynamic system cooling

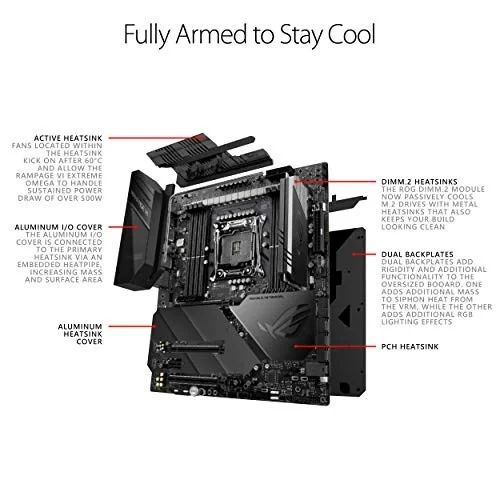

- Active heatsink with integrated VRM fan, pcie-zone M.2 aluminum heatsink and dual backplates ensure comprehensive system cooling
- Unmatched Personalization with Aura Sync RGB lighting including two RGB headers, one addressable header and livedash OLED.Supports up to 32-Bit/192kHz playback
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG RAMPAGE VI EXTREME OMEGA |
| Launch Date | January 2019 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG RAMPAGE VI EXTREME OMEGA |
| SKU Code | ROG RAMPAGE VI EXTREME OMEGA |
| GTIN / EAN | 192876225653 |
