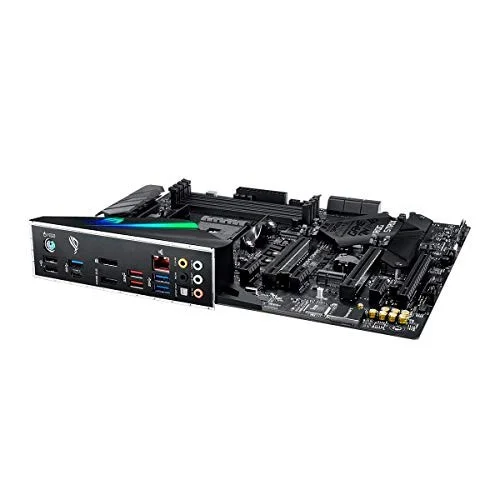

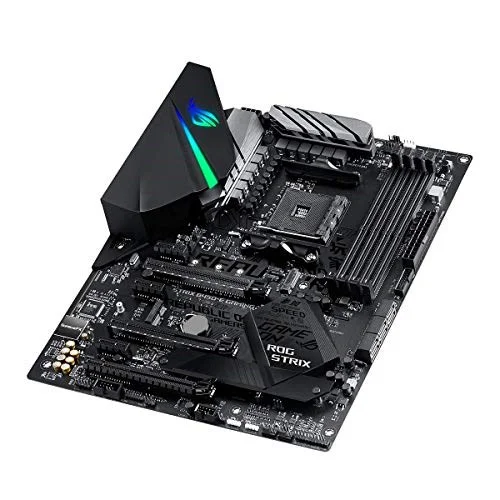

ASUS ROG Strix B450-E AM4 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix B450-E is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).
- 64GB DDR4-SDRAM
- ATX Form Factor
- Ports: 2 X USB2.0, 4X USB3.0 (3.1 Gen 1) Type-A, 2 X USB3.1 (3.1 Gen 2) Type-A, 1 X Ethernet LAN RJ-45, 1 X PS/2, 1 X HDMI, 1 X Displayports
- AM4 Socket: Ready For AMD Ryzen Processors
- Includes Automated System-Wide Tuning, Providing Overclocking And Tailored Cooling Profiles
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX B450-E GAMING STRIX B450-E GAMING |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 - E Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX B450-E GAMING |
| SKU Code | ROG STRIX B450-E GAMING |
| GTIN / EAN | 4718017132879 |
