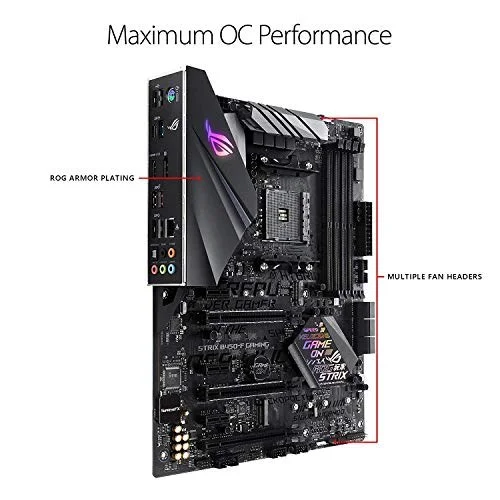

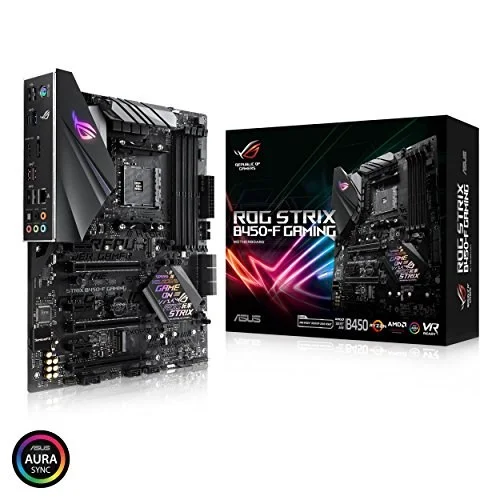

ASUS ROG Strix B450-F AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix B450-F is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Powered by 2nd generation AMD Ryzen AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2, gigabit LAN and up to 64GB of DDR4 (3200 MHz)
- 5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Aura Sync RGB lighting plus 2 additional RGB headers provide a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products

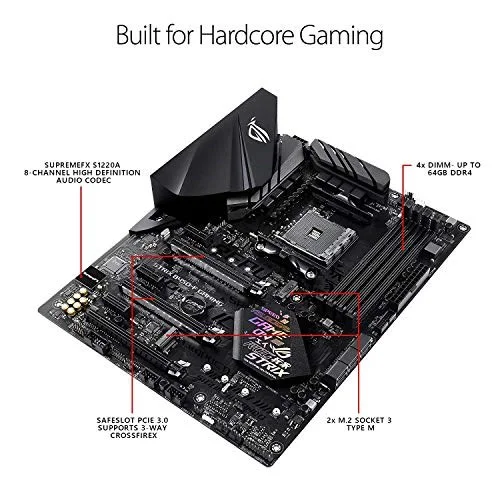

- Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors. Operating System-Windows 10 64-bit
- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | STRIX B450-F GAMING ROG STRIX B450-F GAMING 90MB0YS0-M0EAY0 90MB0YS0-MVAAY0 |
| Launch Date | July 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

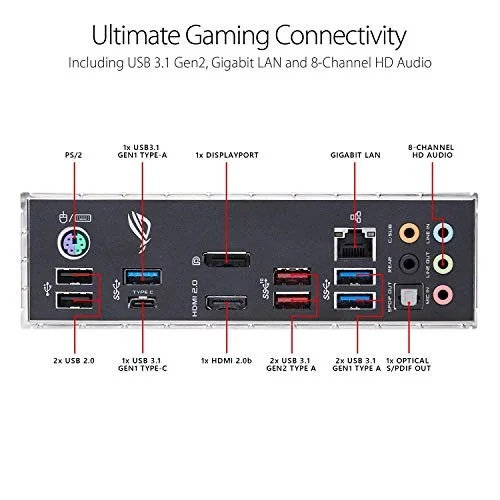

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | STRIX B450-F GAMING |
| SKU Code | STRIX B450-F GAMING |
| GTIN / EAN | 192876080276 |
