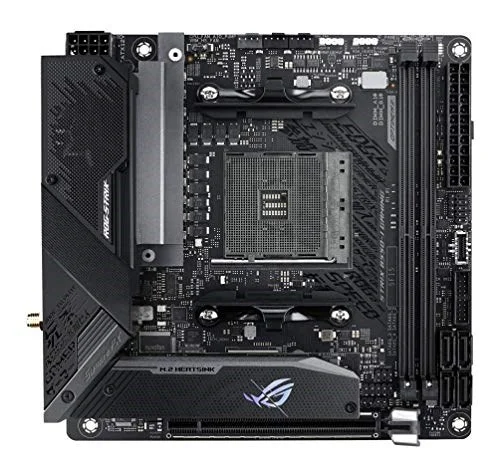

ASUS ROG Strix B550-I Gaming AM4 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix B550-I Gaming is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- AMD AM4 Socket And Pcie 4.0: The Perfect Pairing For 3Rd Gen AMD Ryzen Cpus

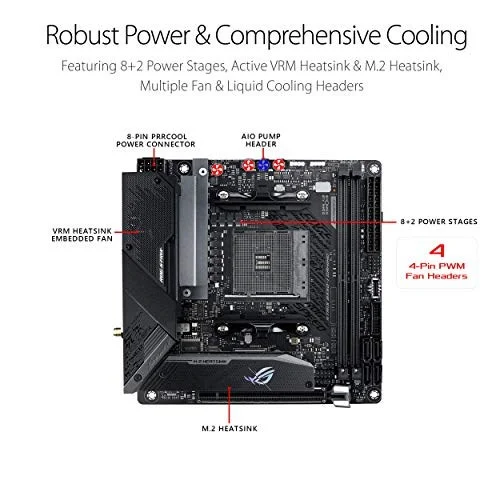

- Optimized Thermal Solution: VRM And PCH Heatsinks With ASUS Stack Cool 3+ Design Keep Your System Running Reliably Under Heavy Load By Enhancing Passive Cooling Capacity For Critical Onboard Components.
- High-Performance Gaming Networking: On-Board Wifi 6 (802.11Ax), Bluetooth V5.1 And 2.5 Gb LAN With ASUS Languard

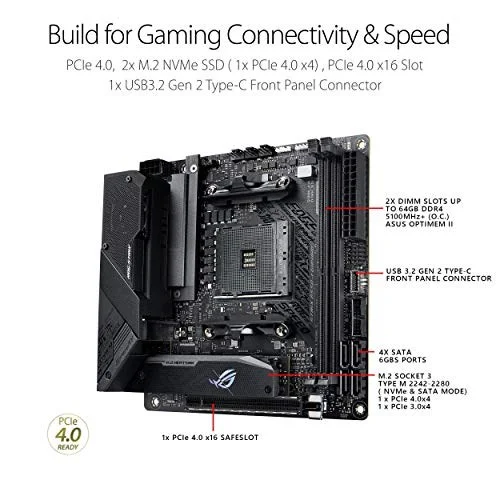

- Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) And Displayport 1.2 Output, Featuring Dual M.2 Slots (Nvme SSD)-One With Pcie 4.0 X4 Connectivity, USB 3.2 Gen 2 Front Panel Type-C Connector, USB 3.2 Gen 2 Type-C Port
- Industry-Leading Gaming Audio & AI Noise Cancelling Mic Technology: High Fidelity Audio From A Supremefx S1220A Codec With DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Action. Communicate Clearly With ASUS AI Noise Cancelling Mic Technology.
- Unmatched Personalization: Mini-ITX Form Factor, ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Header And Addressable Gen 2 RGB Header For Greater Customization
- Robust Power Design: 8+2 Drmos Power Stages With High-Quality Alloy Chokes And Durable Capacitors Provide Reliable Power For The Latest High-Core-Count AMD Cpus
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX B550-I GAMING STRIX B550-I GAMING 90MB14L0-M0EAY0 90MB14L0-M0AAY0 |
| Launch Date | June 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3800 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX B550-I GAMING |
| SKU Code | ROG STRIX B550-I GAMING |
| GTIN / EAN | 192876786383 |
