Asus ROG STRIX B660-I GAMING WIFI LGA1700 Mini-ITX DDR5 96 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus ROG STRIX B660-I GAMING WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6200 MT/s (OC).

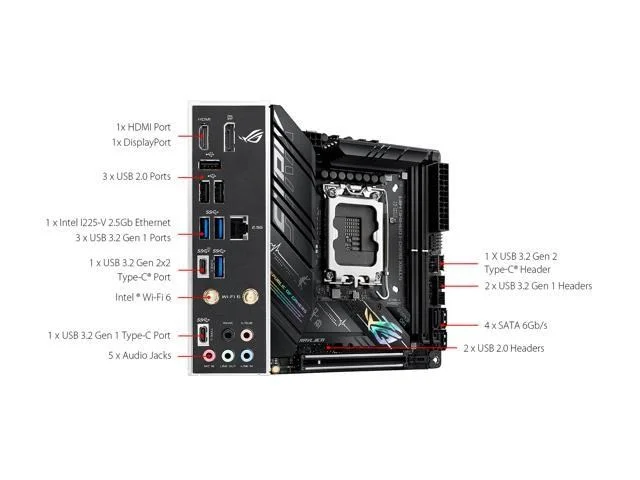

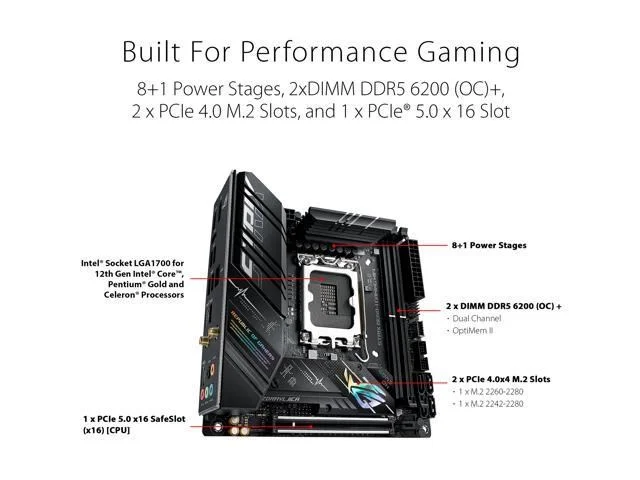

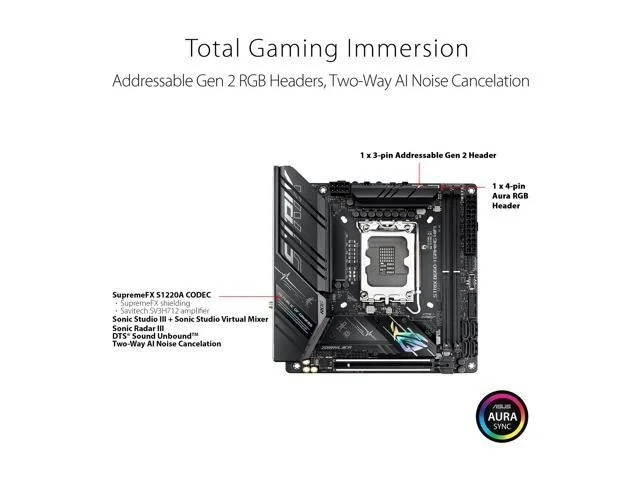

- ASUS ROG STRIX B660-I GAMING WIFI LGA 1700 (Intel 12th Gen) Mini-ITX Gaming Motherboard (PCIe 5.0, 8+1 power stages, DDR5, WiFi 6, 2.5 Gb LAN, 2xM.2 PCIe 4.0 NVMe SSD support, USB 3.2 Gen 2x2 Type-C) Memory Standard: DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800* * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Number of Memory Slots: 2×288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | ROG STRIX B660-I GAMING WIFI 90MB19C0-M0AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 96 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX B660-I GAMING WIFI |
| SKU Code | ROG STRIX B660-I GAMING WIFI |
| GTIN / EAN | 195553514965 |
Price History (last 12 months)
Plots available price points within the past 12 months.
