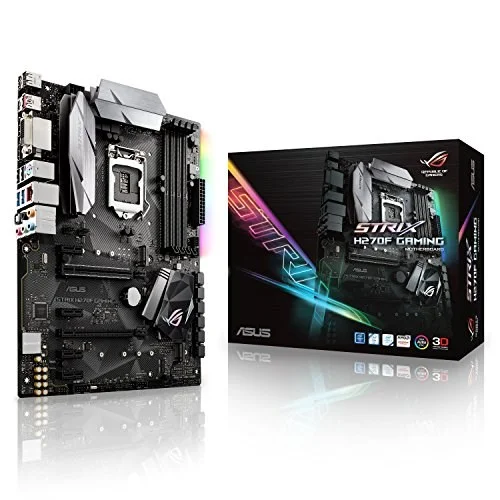

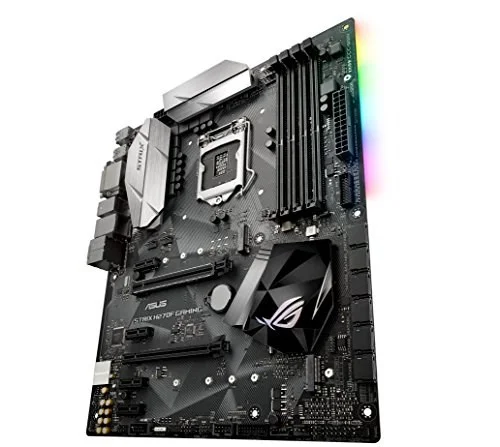

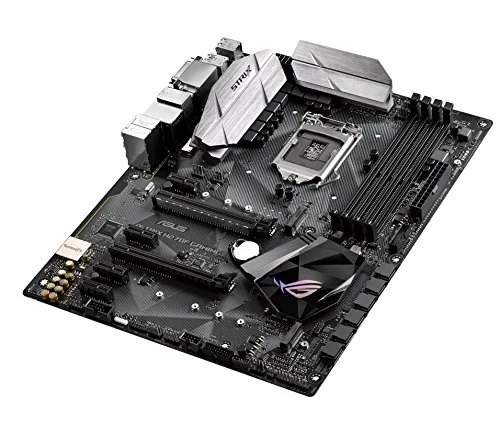

ASUS ROG STRIX H270F GAMING LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG STRIX H270F GAMING is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- FanXpert 4 allows for dynamic fan calibration and optimized system cooling while gaming
- Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, an additional RGB header and a 3D-printing friendly mount
- Maximize your connectivity and speed with Dual M.2, front panel USB 3.1 and Intel Optane Memory compatibility
- Patent-pending Safe Slot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | STRIX H270F GAMING ROG STRIX H270F GAMING |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

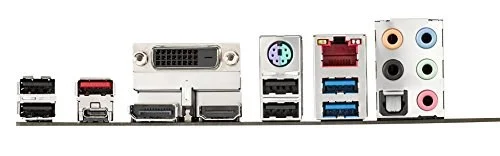

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | STRIX H270F GAMING |
| SKU Code | STRIX H270F GAMING |
| GTIN / EAN | 889349600061 |
