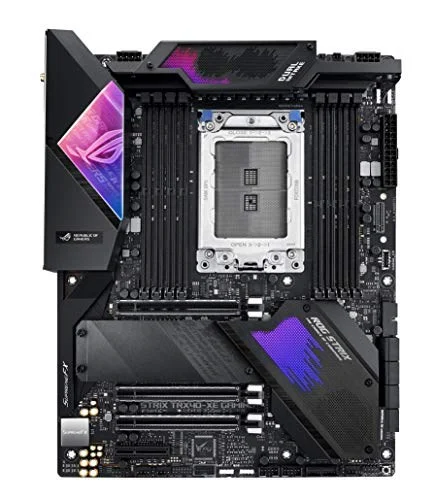

ASUS ROG STRIX TRX40-XE GAMING sTRX4 ATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG STRIX TRX40-XE GAMING is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Compatible With 3 Gen Amd Ryzen Threadripper Processors. (Up To 64 Cores), A Cpu That Maximizes Connectivity And Speed With Support For Up To Three Units M. 2 And Usb3. 2 Gen 2
- Unmatched Customization Oled Display And Aura Sync Rgb With Two Rgb Connectors And Two 2 Gene Rgb Addressable
- Robust Power Design 16 Power Stages With Procool Ii Power Outlets And High Quality Chokes And Capacitors For The Latest Multi-Core Processors
- Full Cooling Active Vrm Heatsink, Heatsink With More Fins, Two Sink M. 2 And Connector For Water Pump
- Gaming Connectivity Three M. 2, USB3 Port. 2 Type C And Front Type C Connector
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX TRX40-XE GAMING 90MB14M0-M0EAY0 |
| Launch Date | April 2020 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3733 / DDR4-3800 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

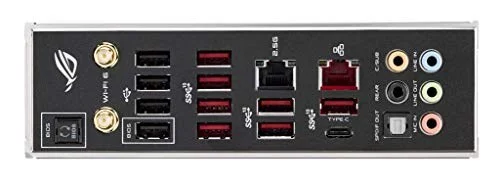

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX TRX40-XE GAMING |
| SKU Code | ROG STRIX TRX40-XE GAMING |
| GTIN / EAN | 192876621561 |
