ASUS ROG Strix X299-E Gaming II LGA2066 ATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix X299-E Gaming II is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).
- Intel X299 LGA 2066 Socket: Ready For The Latest Intel Core X-Series Processors To Maximize Connectivity And Speed With Up To Three M. 2 Drives, USB 3. 2 Gen 2, Intel VROC And Intel Optane Memory Compatibility

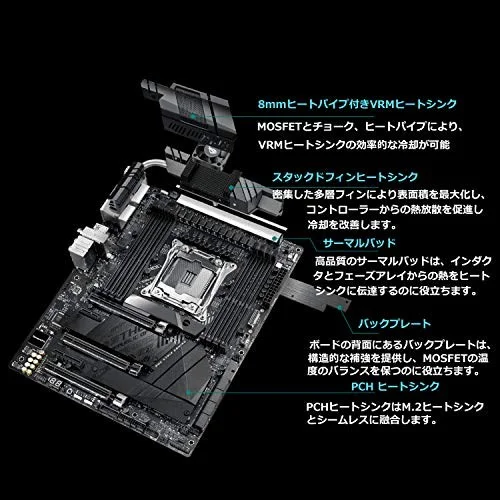

- Optimal Power & Cooling Solution: 12 Power Stages With Procool II Power Connector, High-Quality Chokes And Durable Capacitors To Support Multi-Core Processors, Active Cooling VRM Heatsink, Stacked-Fin Heat Sink, With 8Mm Heat Pipe, Dual On-Board M. 2 Heatsinks, A Water Pump + Header And Multiple Fun Headers
- Best In Class Gaming Networking: 2. 5Gbps LAN And Intel Gigabit Ethernet With Asus Languard, Wi-Fi 6 (802. 11Ax) With MU-MIMO, And Gateway Teaming Via Gamefirst V
- Next Gen Gaming Connectivity: Features 3X M. 2, USB 3. 2 Gen 2 Ports And USB 3. 2 Gen 2 Front Panel Connector, 8X SATA 6 Gb/S.
- Unmatched Personalization: OLED And ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers
- DIY Friendly: ROG-Patented Pre-Mounted I/O Shield, Flex Key, ASUS Safe Slot, ASUS Node Connector And BIOS Flashback For A Friendlier Building Experience
- Industry Leading Gaming Audio: High Fidelity Audio With Supreme S1220A, DTS Sound Unbound And Sonic Studio III To Draw You Deeper Into The Action
- Ai Overclocking: Quickly Optimizes Your CPU Performance Based On The CPU And Cooler, Achieving Results That Are Extremely Close To Manual Tuning By Experts
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | X299-E Gaming II ROG Strix X299-E Gaming II 90MB11A0-M0AAY0 |
| Launch Date | September 2019 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X299-E Gaming II |
| SKU Code | X299-E Gaming II |
| GTIN / EAN | 192876473238 |
