ASUS ROG Strix X470-I Gaming AM4 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS ROG Strix X470-I Gaming is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).

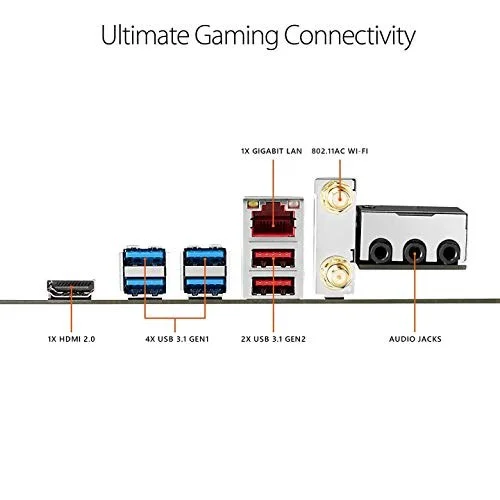

- Powered By AMD Ryzen 2 AM4 And 7Th Generation Athlon Processors To Maximize Connectivity And Speed With Dual M.2, USB 3.1 Gen 2, 802.11Ac Wi-Fi, And Gigabit LAN

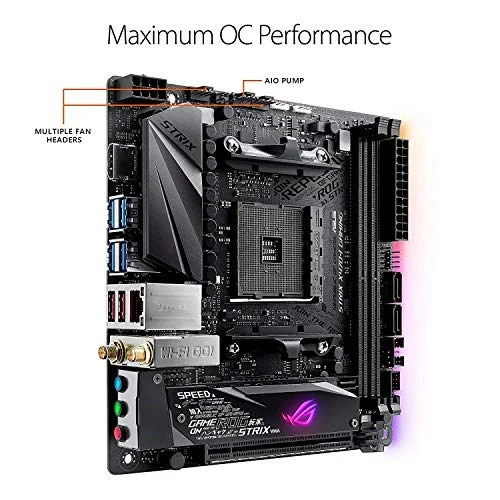

- 5-Way Optimization With Auto-Tuning And Fanxpert 4 Automatically Tailors Overclocking Profiles To Your Unique Build For Maximum OC Performance And Dynamic System Cooling

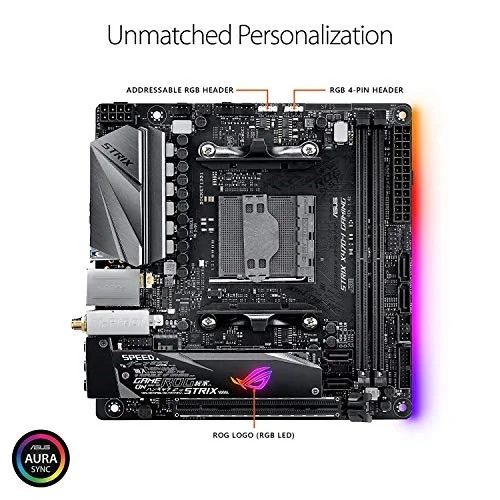

- Unmatched Personalization With ASUS Exclusive Aura Sync RGB Lighting, RGB 4-Pin Header And Addressable RGB Header
- Pre-Mounted I/O Shield Ensures Streamlined Installation And Represents ROG’s Attention To Detail And Quality
- Industry-Leading 8-Channel HD Audio With Dual Headphone Amplifiers, LED-Illuminated Jacks, And ROG Exclusive Supremefx S1220A Codec Driven By Japanese Capacitors
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | STRIX X470-I GAMING ROG STRIX X470-I GAMING 90MB0XE0-M0EAY0 |
| Launch Date | April 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | AMD X470 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | STRIX X470-I GAMING |
| SKU Code | STRIX X470-I GAMING |
| GTIN / EAN | 192876018521 |
