Description

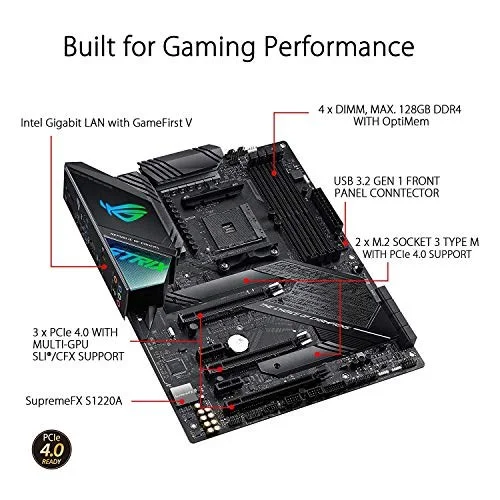

The ASUS ROG STRIX X570-F GAMING is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- Mad AM4 socket: ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M. 2 drives, USB 3. 2 Gen2 and AMD stored

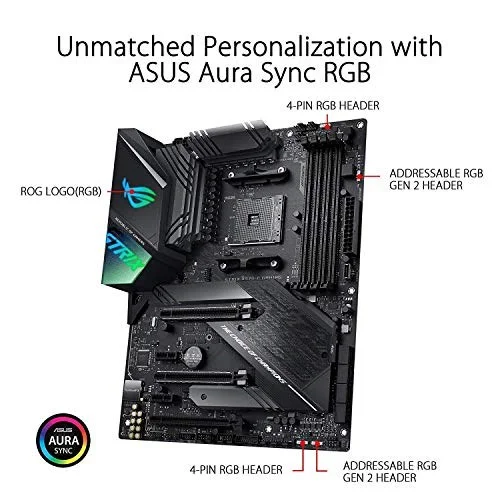

- Aura Sync RGB: ASUS-exclusive aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers

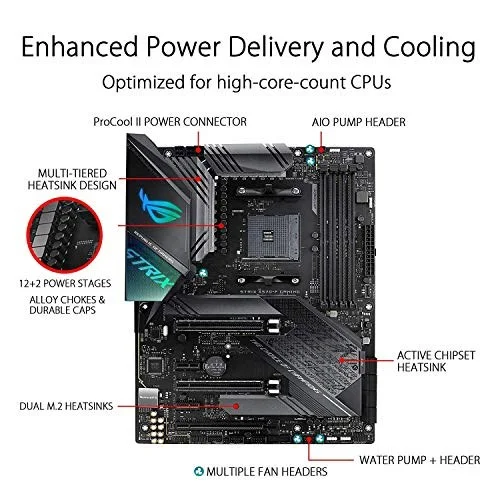

- Comprehensive cooling: active PCH heatsink, MOS heatsink with 8mm Heat pipe, Dual on-board M. 2 heatsinks and a water pump + Header

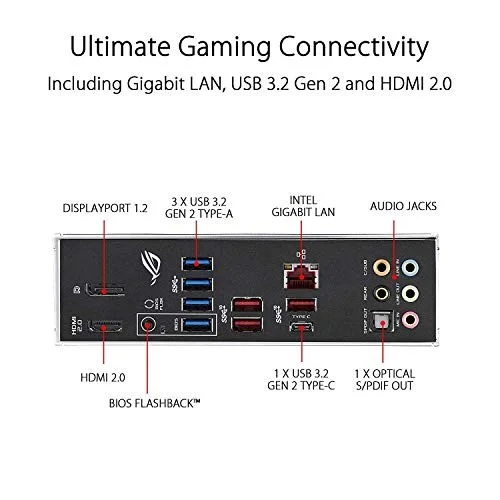

- Gaming connectivity: supports Pie 4. 0, HDMI 2. 0, DisplayPort 1. 2 and features dual M. 2 and USB 3. 2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, ASUS Languid and GameFirst
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | ROG STRIX X570-F GAMING 90MB1160-M0EAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | ROG STRIX X570-F GAMING |
| SKU Code | ROG STRIX X570-F GAMING |
| GTIN / EAN | 192876378953 |
